BPV22NF

VISHAY  BPV22NF  光电二极管, PIN

940nm - 120° 径向，侧视图

得捷:
PHOTODIODE 780 TO 1050 NM

欧时:

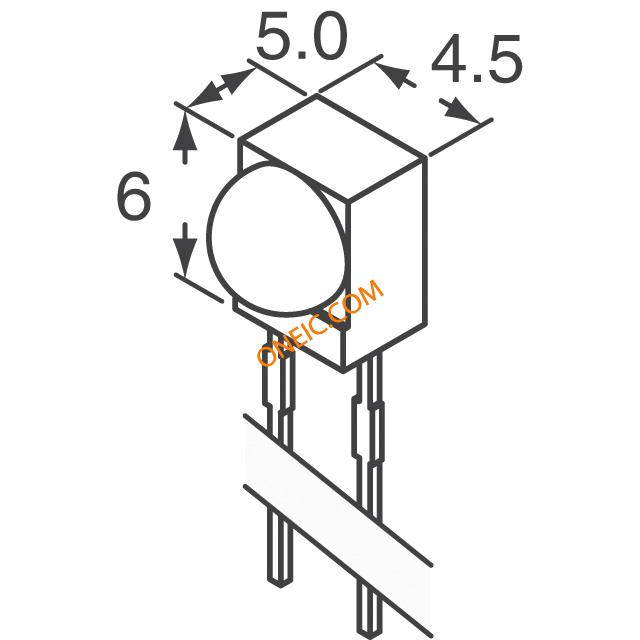

### BPV22 and BPV23 Series PIN PhotodiodesThe BPV22 and BPV23 series, from Vishay Semiconductor, are a range on PIN photodiodes within a side looking package. They are in a through-hole package with a black plastic lens and daylight filter. Its dome lens offers an 80% improvement in sensitivity in comparison to a flat lens type. Suitable applications for the BPV22 and BPV23 PIN photodiodes include; IR radiation detectors, IR remote control and air data transmission systems. The BPV22 and BPV23 can be used in combination with the TSFF BPV22 or TSAL BPV23 series IR emitters. Features of the BPV22 and BPV23 PIN photodiodes: Through-hole mounting Side looking SL package High radiant sensitivity Black plastic package with daylight filter Dimensions: 4.5 x 5 x 6 mm Fast response times Angle of half intensity: 60° ### IR 光电二极管，Vishay Semiconductor

贸泽:
光电二极管 Sideview 790-1050nm +/-60 deg

艾睿:
Photodiode PIN Chip 940nm 0.6A/W Sensitivity 2-Pin Side View Bulk

富昌:
940 nm 100 ns ± 60° 宽角度 高速 硅 PIN 光电二极管

TME:
PIN IR photodiode; 120°; 940nm; 7.5mm2; THT; 85uA

Verical:
Photodiode PIN Chip 940nm 0.6A/W Sensitivity 2-Pin Side View Bulk

Newark:
# VISHAY  BPV22NF  Photodiode, 60 °, 2 nA, 940 nm, Radial Leaded-2

儒卓力:
**PIN PHOTODIODE SIDE VIEW **
