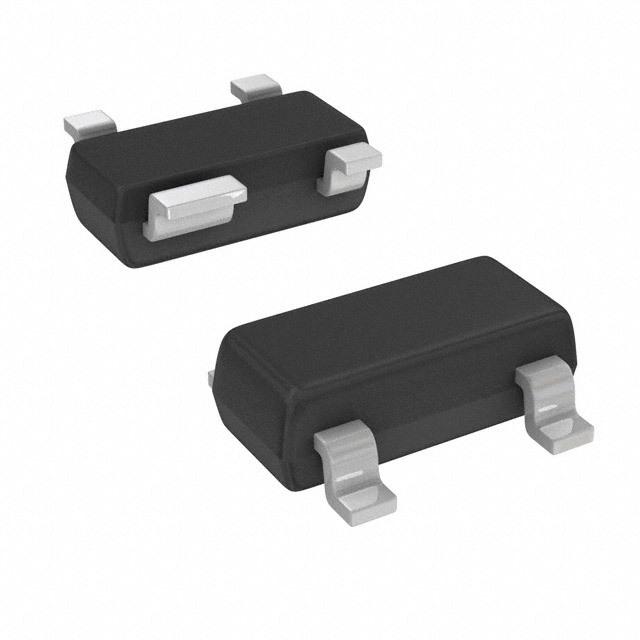

Infineon 二极管 BAW101E6327HTSA1 高电压, Io=500mA, Vrev=300V, 1μs, 4引脚 SOT-143封装
小信号开关,
Infineon 高速小信号开关二极管,电流额定值高达 1A,反向电压额定值高达 400V。 多数这些设备提供双路、三路和四路配置。
得捷:
DIODE ARRAY GP 300V 250MA SOT143
欧时:
Infineon 二极管 BAW101E6327HTSA1 高电压, Io=500mA, Vrev=300V, 1μs, 4引脚 SOT-143封装
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode BAW101E6327HTSA1 rectifier from Infineon Technologies. Its maximum power dissipation is 350 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its peak non-repetitive surge current is 4.5 A, while its maximum continuous forward current is 0.5 A. It is made in a dual parallel configuration. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.
Chip1Stop:
Diode Switching 300V 0.5A Automotive 4-Pin3+Tab SOT-143 T/R
TME:
Diode: switching; SMD; 300V; 0.25A; 1us; 350mW; Package: reel, tape
Verical:
Rectifier Diode Switching 300V 0.25A 1000ns Automotive 4-Pin SOT-143 T/R
Win Source:
DIODE ARRAY GP 300V 250MA SOT143
额定电压DC 300 V
额定电流 250 mA
电容 6.00 pF
额定功率 350 mW
输出电流 ≤250 mA
负载电流 0.25 A
正向电压 1.3 V
耗散功率 350 mW
反向恢复时间 1 μs
正向电流 250 mA
最大正向浪涌电流(Ifsm) 4.5 A
正向电压Max 1.3V @100mA
正向电流Max 250 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 150℃ Max
耗散功率Max 350 mW
安装方式 Surface Mount
引脚数 4
封装 TO-253-4
长度 2.9 mm
宽度 1.3 mm
高度 1 mm
封装 TO-253-4
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
