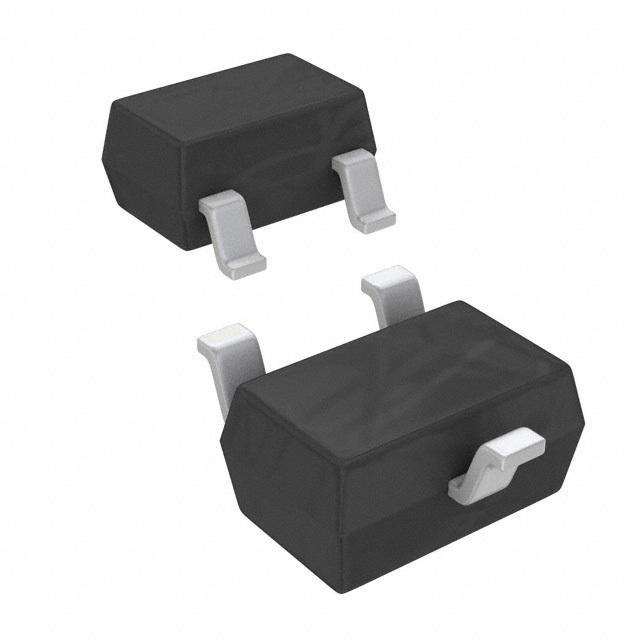

小信号肖特基二极管, 双共阴极, 70 V, 70 mA, 1 V, 100 mA, 125 °C
阵列 1 对共阴极 肖特基 70mA(DC) 表面贴装型 SC-70,SOT-323
欧时:

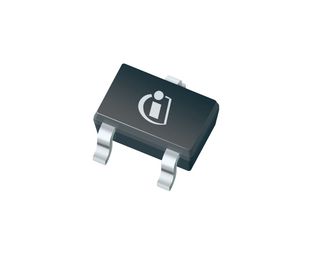

Infineon BAS7005WH6327XTSA1
得捷:
DIODE ARRAY SCHOTTKY 70V SOT323
贸泽:
Schottky Diodes & Rectifiers AF SCHOTTKY DIODE
e络盟:
小信号肖特基二极管, 双共阴极, 70 V, 70 mA, 1 V, 100 mA, 125 °C
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode BAS7005WH6327XTSA1 rectifier from Infineon Technologies. Its maximum power dissipation is 250 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It is made in a dual common cathode configuration. Its peak non-repetitive surge current is 0.1 A, while its maximum continuous forward current is 0.07 A. This rectifier has a minimum operating temperature of -55 °C and a maximum of 125 °C.
安富利:
Diode Schottky 70V 0.07A 3-Pin SOT-323 T/R
Chip1Stop:
Diode Schottky 70V 0.07A 3-Pin SOT-323 T/R
TME:

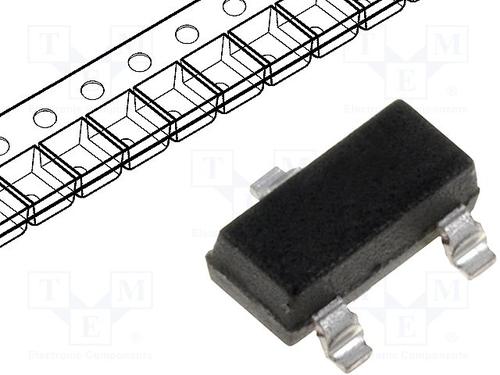

Diode: Schottky switching; SMD; 70V; 0.07A; SOT323
Verical:
Rectifier Diode Schottky Si 0.07A Automotive 3-Pin SOT-323 T/R
负载电流 0.07 A
针脚数 3
正向电压 1V @15mA
耗散功率 250 mW
反向恢复时间 100 ps
正向电流 70 mA
最大正向浪涌电流(Ifsm) 100 mA
正向电压Max 1 V
正向电流Max 70 mA
工作温度Max 125 ℃
工作温度Min 55 ℃
工作结温 150℃ Max
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-323-3
高度 0.9 mm
封装 SOT-323-3
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAS7005WH6327XTSA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
BAS70W-05-7-F 美台 | 功能相似 | BAS7005WH6327XTSA1和BAS70W-05-7-F的区别 |
