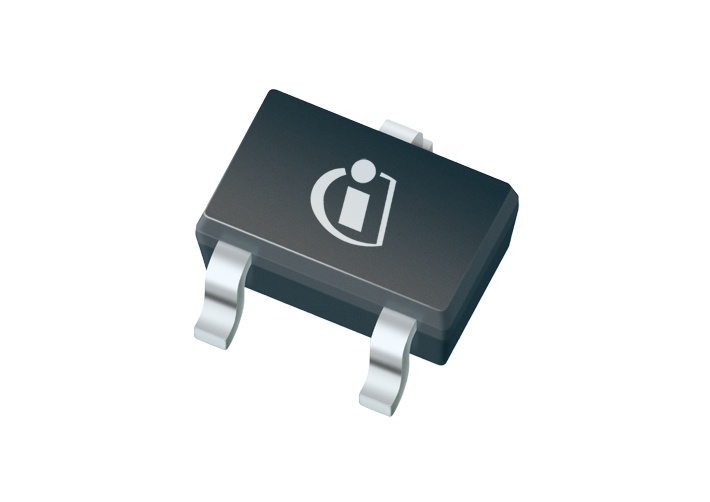

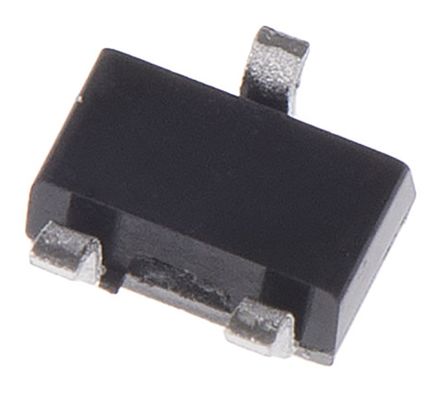

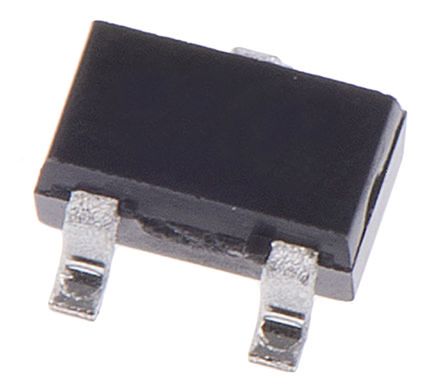

Infineon 二极管 BAT6804E6327HTSA1 开关 肖特基, Io=130mA, Vrev=8V, 3引脚 SOT-323 SC-70封装
肖特基势垒，
得捷:
DIODE SCHOTTKY 8V 150MW SOT23-3
欧时:
Infineon 二极管 BAT6804E6327HTSA1 开关 肖特基, Io=130mA, Vrev=8V, 3引脚 SOT-323 SC-70封装
e络盟:

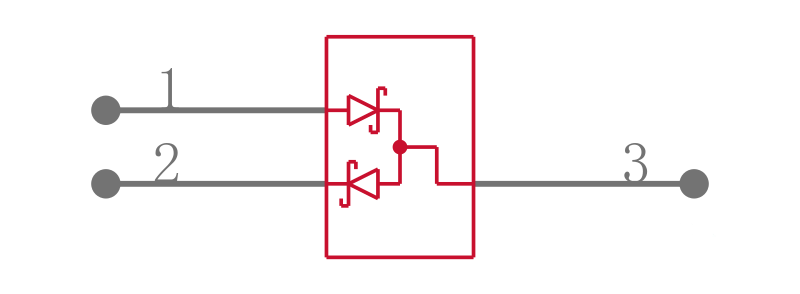

小信号肖特基二极管, 双系列, 8 V, 130 mA, 500 mV, 150 °C
艾睿:
Converting from AC to DC is simple when using a Schottky diode BAT6804E6327HTSA1 rectifier from Infineon Technologies. Its maximum power dissipation is 150 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This rectifier has an operating temperature range of -55 °C to 150 °C. It is made in a dual series configuration. Its maximum continuous forward current is 0.13 A.
安富利:
Diode Schottky 8V 0.13A 3-Pin SOT-23 T/R
Chip1Stop:
Diode Schottky 8V 0.13A Automotive 3-Pin SOT-23 T/R
TME:

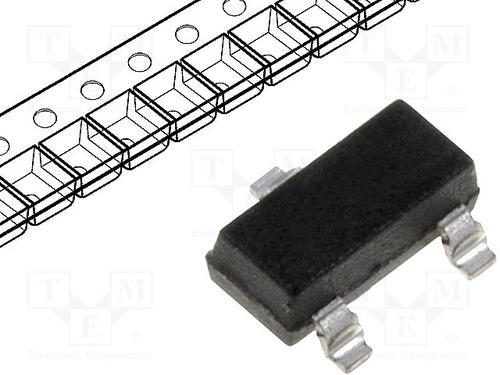

Diode: Schottky rectifying; SMD; 8V; 0.13A; SOT23
Verical:
RF Diode Schottky 8V 150mW Automotive 3-Pin SOT-23 T/R
额定电压DC 8.00 V
额定电流 130 mA
负载电流 0.13 A
针脚数 3
正向电压 0.5 V
耗散功率 150 mW
正向电流 130 mA
正向电压Max 500 mV
正向电流Max 130 mA
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 3

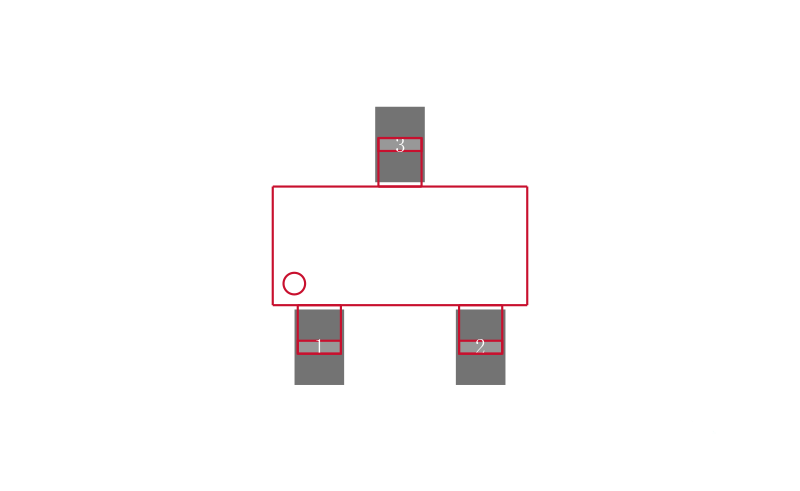

封装 SOT-23-3

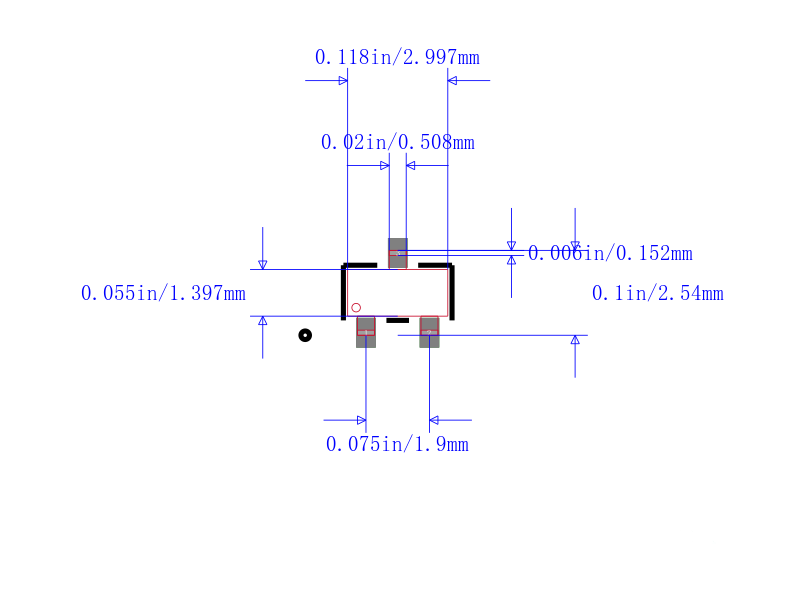

长度 2.9 mm
宽度 1.3 mm
高度 0.9 mm
封装 SOT-23-3
工作温度 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Base Stations, Satellite Receivers, High Speed Data Networks, Wireless Communications
RoHS标准 RoHS Compliant
含铅标准 Lead Free
