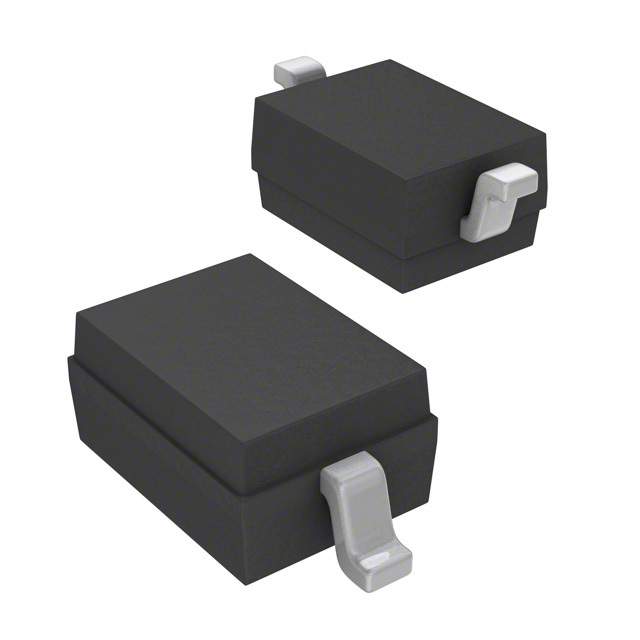

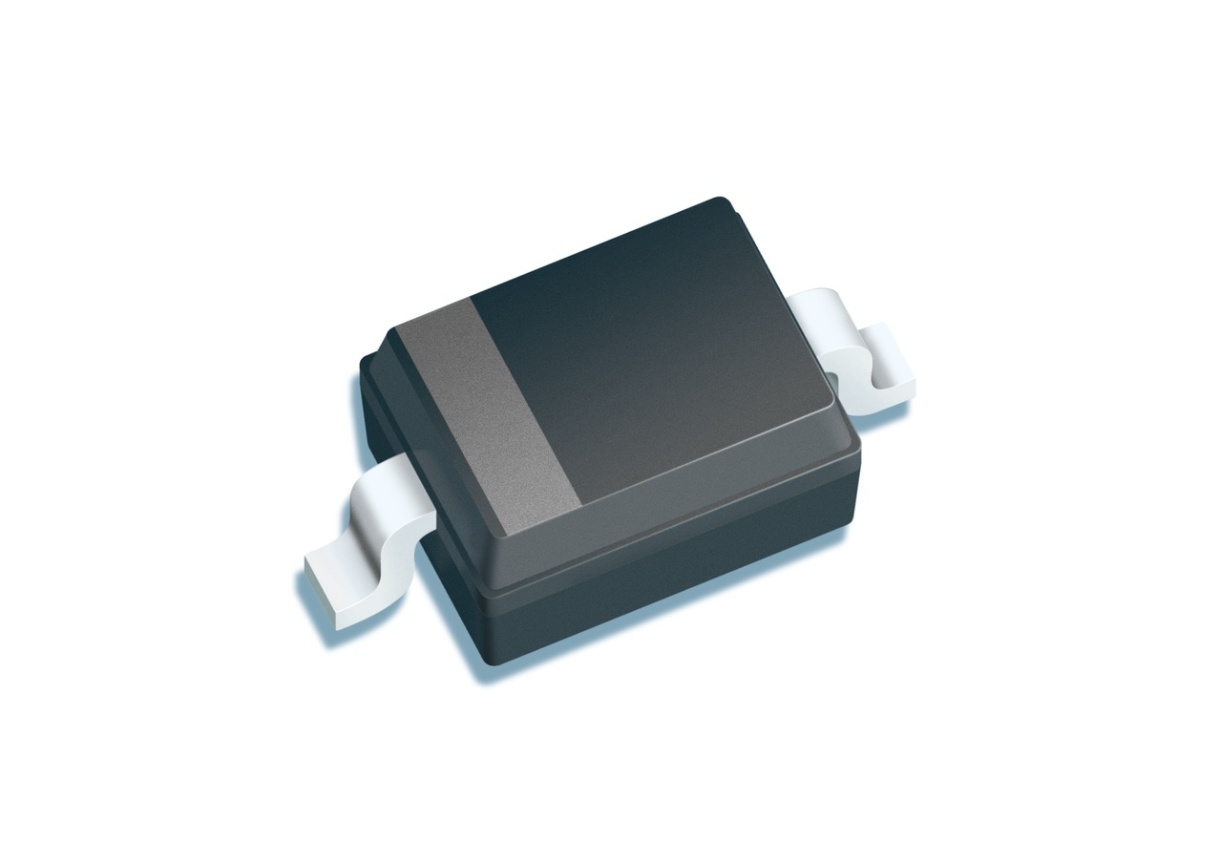

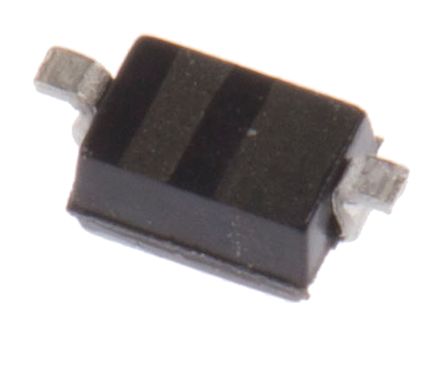

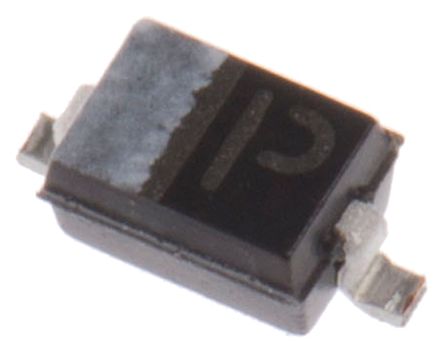

INFINEON BAT1503WE6327HTSA1 二极管, 射频肖特基, AEC-Q101, 单, 4 V, 110 mA, 410 mV, 0.35 pF, SOD-323
射频肖特基，
得捷:
DIODE SCHOTTKY 4V 100MW SOD323-2
欧时:
Infineon 二极管 BAT1503WE6327HTSA1 肖特基, Io=110mA, Vrev=4V, 2引脚 SOD-323封装
贸泽:
肖特基二极管与整流器 RF DIODES
艾睿:
Converting from AC to DC is simple when using a Schottky diode BAT1503WE6327HTSA1 rectifier from Infineon Technologies. Its maximum power dissipation is 100 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a single configuration. Its maximum continuous forward current is 0.11 A. This rectifier has an operating temperature range of -55 °C to 150 °C.
Chip1Stop:
Diode Schottky 4V 0.11A 2-Pin SOD-323 T/R
TME:
Diode: Schottky rectifying; SMD; 4V; 0.11A; SOD323
Verical:
Diode RF Schottky 4V 100mW Automotive 2-Pin SOD-323 T/R
Newark:
# INFINEON BAT1503WE6327HTSA1 RF Schottky Diode, Single, 4 V, 110 mA, 410 mV, 0.35 pF, SOD-323
额定电压DC 4.00 V
额定电流 110 mA
电容 0.35 pF
输出电流 ≤110 mA
负载电流 0.11 A
正向电压 0.41 V
极性 Standard
耗散功率 100 mW
正向电流 110 mA
正向电压Max 410 mV
正向电流Max 110 mA
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 100 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323-2
长度 1.7 mm
宽度 1.25 mm
高度 1.05 mm
封装 SOD-323-2
工作温度 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 工业, Industrial, Base Stations, 车用, Signal Processing, High Speed Data Networks, Wireless Communications, 射频通信, RF Communications, Satellite Receivers, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
