SC-74 NPN 50V 500mA
* Switching circuit, inverter circuit, driver circuit * Built in bias resistor R1= 1 kΩ, R2= 10 kΩ * Pb-free RoHS compliant package * Qualified according AEC Q101
得捷:
TRANS 2NPN PREBIAS 0.33W SC74
立创商城:
BCR523UE6327HTSA1
艾睿:
Trans Digital BJT NPN 50V 500mA Automotive 6-Pin SC-74 T/R
安富利:
Trans Digital BJT NPN 50V 500mA 6-Pin SC-74 T/R
Verical:
Trans Digital BJT NPN 50V 500mA 330mW Automotive 6-Pin SC-74 T/R
Win Source:
TRANS 2NPN PREBIAS 0.33W SC74 / Pre-Biased Bipolar Transistor BJT 2 NPN - Pre-Biased Dual 50V 500mA 100MHz 330mW Surface Mount PG-SC74-6
额定电压DC 50.0 V
额定电流 500 mA
极性 NPN
耗散功率 0.33 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 500mA
最小电流放大倍数hFE 70 @50mA, 5V
额定功率Max 330 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
增益带宽 100 MHz
耗散功率Max 330 mW
安装方式 Surface Mount
引脚数 6

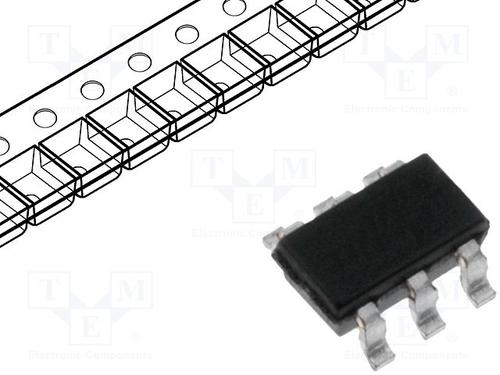

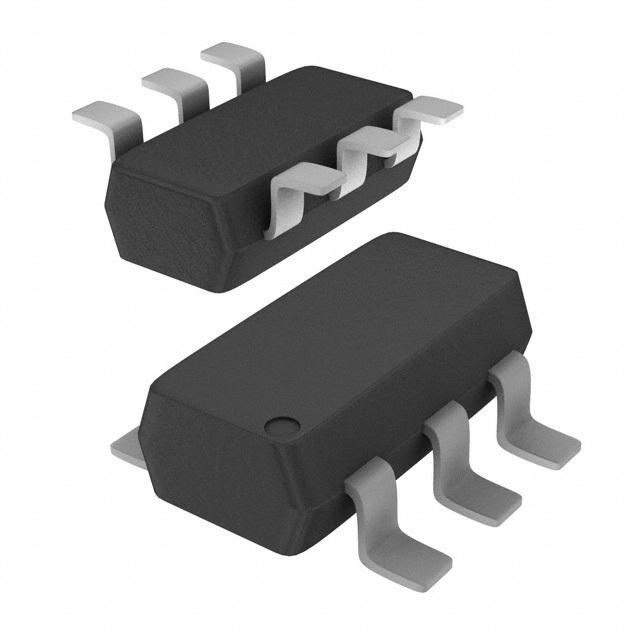

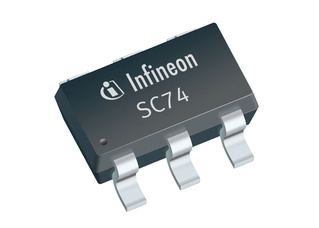

封装 SC-74-6
封装 SC-74-6
工作温度 -65℃ ~ 150℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
