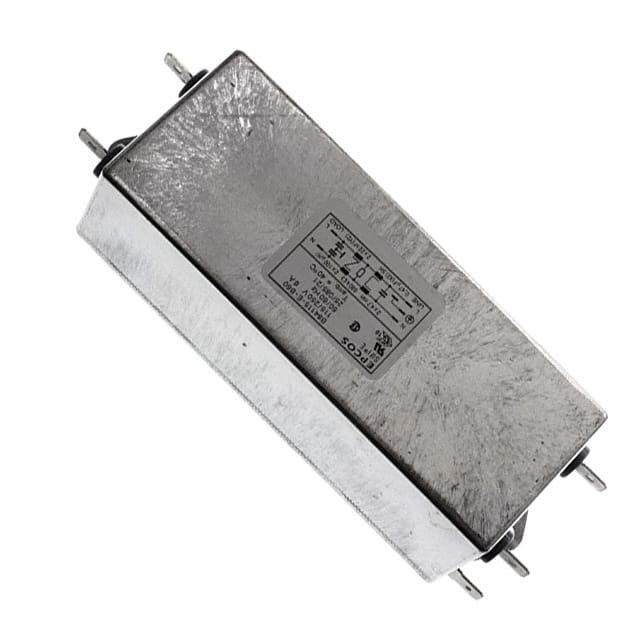

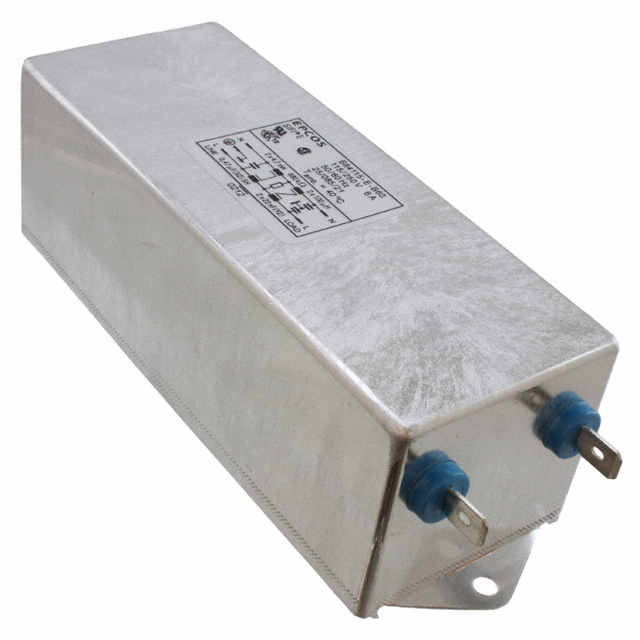

EPCOS B84115E0000B060 电源线滤波器, 机壳, 标准型, 6 A, 250 V, 0.5 mA, 0.47 µF, 100 µH
The is an EMC Power Line Filter offers 6A current and used for 1-phase systems. It is suitable for use in switch-mode power supplies, industrial electronics, telecommunications, data systems and DC applications.
- .
- UL94V-0 Flammability rating
- .
- Easy to install
- .
- Compact design
- .
- Optimized leakage current
- .
- Very high insertion loss, even in the range below 100kHz
- .
- SIFI-E for high insertion loss
额定电压DC 250 V
额定电流 6 A
电容 0.47 µF
电感 100 µH
额定电流Max 6 A
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 250 V
安装方式 Quick Connect, Chassis
长度 159 mm
宽度 50.8 mm
高度 44.5 mm
产品生命周期 Active
制造应用 Power Management, 通信与网络, Industrial, Communications & Networking, 电源管理, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
B84115E0000B060 Epcos 爱普科斯 | 当前型号 | 当前型号 |
FN2080-6-06 Schaffner | 功能相似 | B84115E0000B060和FN2080-6-06的区别 |
