BTB06-600BW

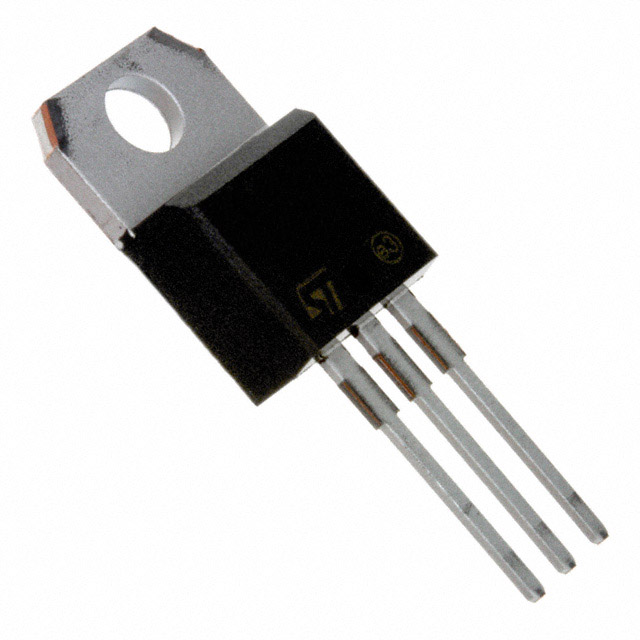

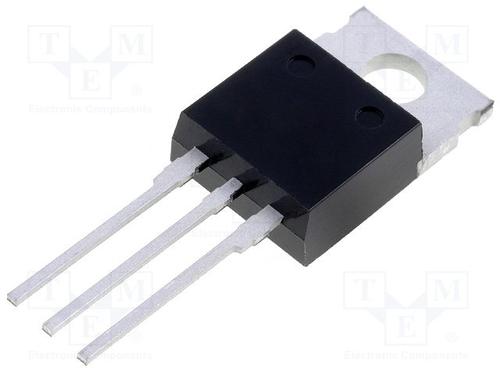

BTB06-600BW图片1
BTB06-600BW图片2
BTB06-600BW图片3
BTB06-600BW图片4
BTB06-600BW概述

SNUBBERLESS⑩ ,逻辑电平及标准 SNUBBERLESS⑩, LOGIC LEVEL & STANDARD

DESCRIPTION

Available either in through-hole or surface-mount packages, the BTA06and BTB06triac series is

suitable for general purpose AC switching. They can be used as an ON/OFF function in applica

tions such as static relays, heating regulation, in duction motor starting circuits... or for phase

control operation in light dimmers, motor speed controllers,...

The snubberless and logic level versions BTA/BTB...W are specially recommended for use on

inductive loads, thanks to their high commutation performances.

By using an internal ceramic pad, the BTA series provides voltage insulated tab rated at

2500VRMS complying with UL standards File ref.: E81734.

BTB06-600BW中文资料参数规格
技术参数

保持电流 50.0 mA

封装参数

安装方式 Through Hole

封装 TO-220

外形尺寸

封装 TO-220

其他

产品生命周期 Unknown

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

BTB06-600BW引脚图与封装图

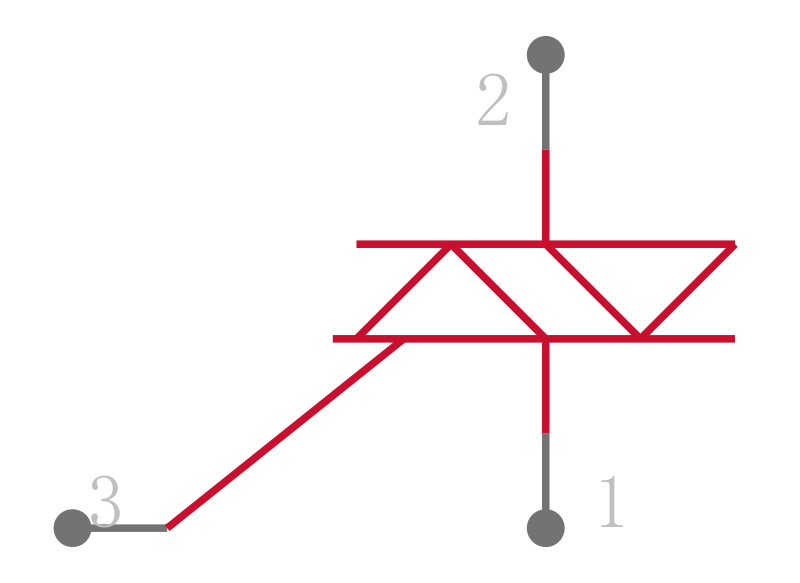

BTB06-600BW引脚图

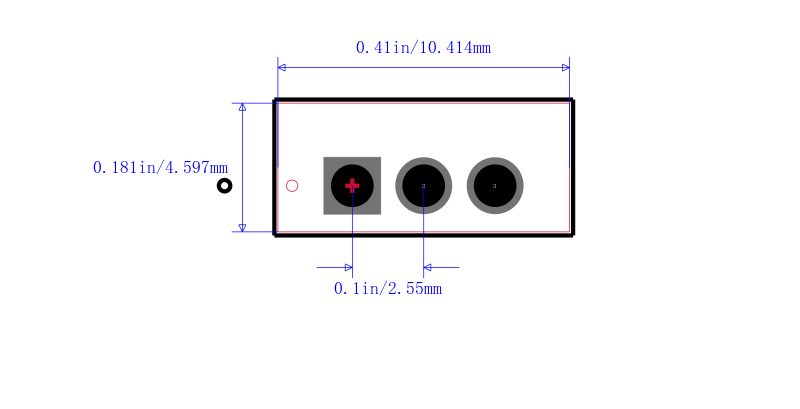

BTB06-600BW封装图

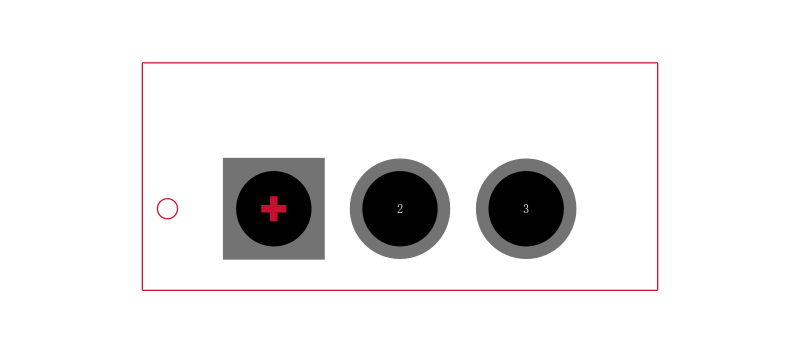

BTB06-600BW封装焊盘图
在线购买BTB06-600BW
型号: BTB06-600BW
制造商: ST Microelectronics 意法半导体
描述:SNUBBERLESS⑩ ,逻辑电平及标准 SNUBBERLESS⑩, LOGIC LEVEL & STANDARD
替代型号BTB06-600BW
型号/品牌 代替类型 替代型号对比

BTB06-600BW

ST Microelectronics 意法半导体

当前型号

当前型号

BTB06-600CW

意法半导体

完全替代

BTB06-600BW和BTB06-600CW的区别

BTB06-600CWRG

意法半导体

类似代替

BTB06-600BW和BTB06-600CWRG的区别

BTB06-600BWRG

意法半导体

功能相似

BTB06-600BW和BTB06-600BWRG的区别
