BR24A16F-WME2

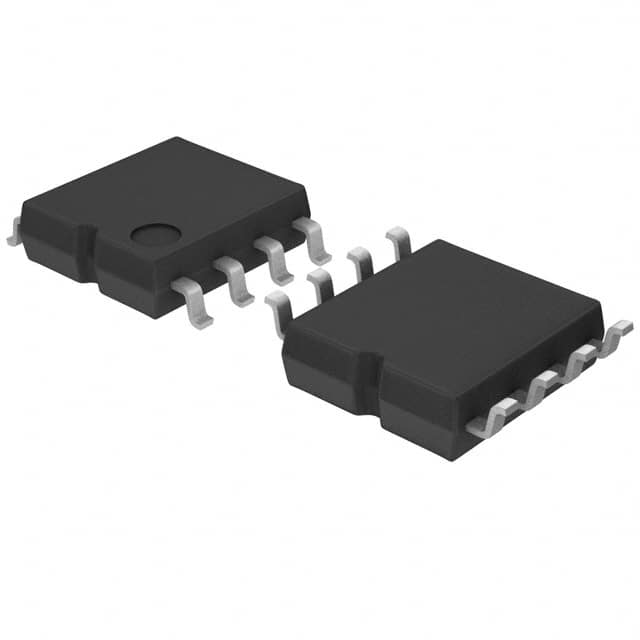

ROHM  BR24A16F-WME2  EEPROM, AEC-Q100, 16 Kbit, 2K x 8位, 400 kHz, I2C, SOP, 8 引脚 新

The is a serial EEPROM of I2C bus interface in 8 pin SOP package. A serial EEPROM Electrically Erasable Programmable Read Only Memory is a non-volatile memory optimized for data retention with I2C bus interface. This serial EEPROM operates at 2.5V to 5.5V making them ideal for battery powered devices.

.

Memory size is 16Kbit, memory configuration is 2K x 8bit format and number of pages is 16byte

.

Completely conforming to I2C standard & all controls available by serial clock and serial data ports

.

Clock frequency is 400KHz

.

Page write mode useful for initial value write at factory shipment

.

Auto erase and auto end function at data rewrite

.

Low current consumption at write operation is 1.2mA, read operation is 0.2mA, standby is 0.1µA at 5V

.

Data rewrite up to 1,000,000 timesTa≦25°C, data kept for 40 yearsTa≦25°C

.

Noise filter built-in SCL / SDA terminal

.

Automotive grade AEC-Q100 qualified

.

Operating temperature range from -40°C to +105°C

ESD sensitive device, take proper precaution while handling the device.

The residue of flux may negatively affect product performance and reliability when highly active halogenous chlorine, bromine etc flux is used.
