B5B-XH-ALFSN

JST JAPAN SOLDERLESS TERMINALS  B5B-XH-A LFSN  线至板连接器, 垂直, XH系列, 5 触点, 针座, 2.5 mm, 通孔安装, 1 排

XH 针座

这些 XH 系列盒型有罩管座提供顶部接入和侧面装入配置。 这些 XH 系列盒型有罩管座的晶片材料为 PA66，等级为 UL 94V-0，颜色为本色（白色）。 支柱采用镀锡黄铜，用于这些 XH 系列盒型有罩管座。

有关匹配的 XH 系列插头外壳，请参见典型库存号 820-1611。

### 2.5mm 线到板 XH 系列

得捷:
CONN HEADER VERT 5POS 2.5MM

欧时:
JST PCB 针座 XH 系列 5路 2.5mm节距 1排 直向 B5B-XH-ALFSN, 焊接端接, 3A, 通孔

立创商城:
XH 2.5mm 1x5P

艾睿:

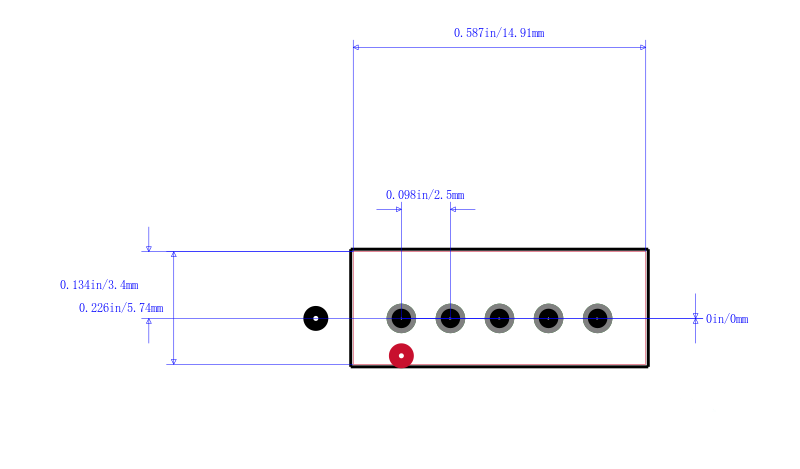

Safety is an important concern when designing electronic devices. JST Corporation&s;s shrouded B5B-XH-A LFSN header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 5 contacts that are made out of brass and plated with tin-lead over copper. Its pitch is 2.5 mm. This is a 1-row connector. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 250 VDC|250VAC. This device has a maximum current rating of 3 A. This connector has an operating temperature of -25 to 85 °C. It uses the solder termination method. B5B-XH-A LFSN is housed in white polyamide 6/6. This product is 14.9 mm long, 7 mm tall and 5.75 mm deep.

Chip1Stop:
Conn Shrouded Header HDR 5 POS 2.5mm Solder ST Thru-Hole Box

Verical:
Conn Shrouded Header 4 Sides HDR 5 POS 2.5mm Solder ST Top Entry Thru-Hole Box

Newark:
# JST JAPAN SOLDERLESS TERMINALS  B5B-XH-A LFSN  Wire-To-Board Connector, Vertical, XH Series, Through Hole, Header, 5, 2.5 mm, Tin Plated Contacts

CDI:
ShrdedHdr, ThruHole, TopEnt, 4Circuit, 2.5mmPitch, RoHs
