B8B-PH-K-SLFSN

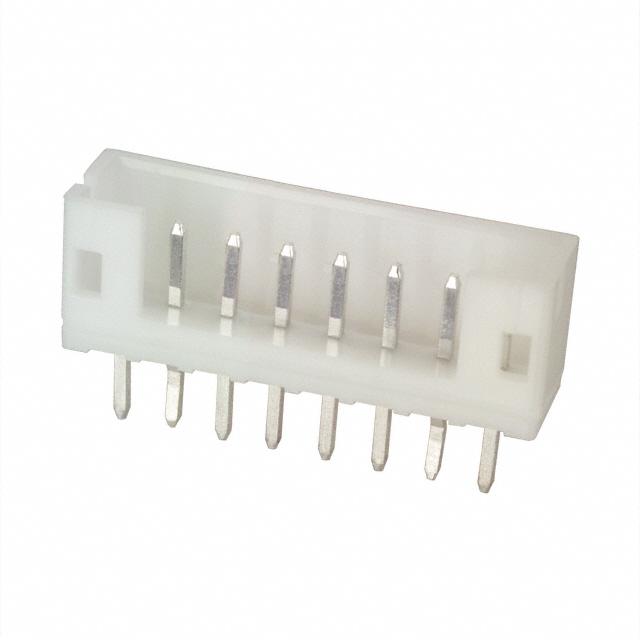

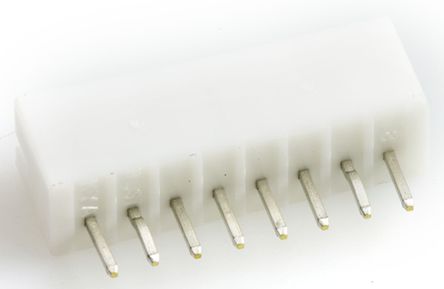

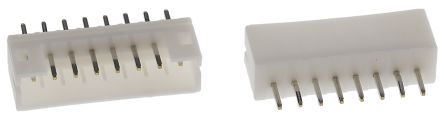

JST JAPAN SOLDERLESS TERMINALS  B8B-PH-K-SLFSN  线至板连接器, PH系列, 8 触点, 针座, 2 mm, 通孔安装, 1 排

PH 系列有罩通孔管座

一系列有罩管座，用于 JST PH 系列薄型 2.0mm 节距线对板。这些紧凑型通孔安装管座特别适用于高密度印刷电路板连接，并以低成本提供高可靠性。提供顶部接入（直向）和侧面接入（直角）两种类型。

得捷:
CONN HEADER VERT 8POS 2MM

欧时:
JST PCB 针座 PH 系列 8路 2mm节距 1排 直向 B8B-PH-K-SLFSN, 焊接端接, 2A, 通孔

立创商城:
PH 2mm 1x8P

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded B8B-PH-K-S LFSN header connector from JST Corporation. This HDR connector&s;s 8 contacts that are made out of brass and plated with tin over copper. It has a straight body orientation. It has a maximum voltage rating of 100 VDC|100VAC. This is a 1-row connector. Its pitch is 2 mm. It has a header type gender. This device has a maximum current rating of 2 A. B8B-PH-K-S LFSN is housed in white polyamide 6/6. It uses the solder termination method. This connector has an operating temperature of -25 to 85 °C. This product is 17.9 mm long, 6 mm tall and 4.5 mm deep.

Chip1Stop:
Conn Shrouded Header HDR 8 POS 2mm Solder ST Thru-Hole Box

Verical:
Conn Shrouded Header 4 Sides HDR 8 POS 2mm Solder ST Top Entry Thru-Hole Box

Newark:
# JST JAPAN SOLDERLESS TERMINALS  B8B-PH-K-SLFSN  Wire-To-Board Connector, 2 mm, 8 Contacts, Header, PH Series, Through Hole, 1 Rows

CDI:
ShroudedHdr, ThruHole, Top Entry, 8Circuit, 2.0mmPitch
