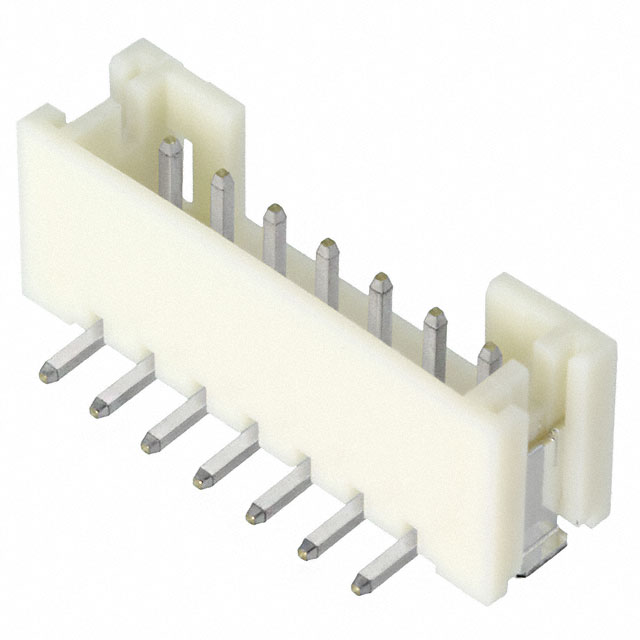

JST JAPAN SOLDERLESS TERMINALS B7B-PH-SM4-TBLFSN 线至板连接器, 顶部进入, PH系列, 7 触点, 针座, 2 mm, 表面安装 , 1 排
Board Connector PH Series Surface Mount Header, Low Insertion Force Top Entry
The PH Connectors are designed to meet the demand for high density connection of internal wires to printed circuit boards. It is compact, highly reliable and low in cost.
### Reliable contact
Fully shrouded header
Current rating of 2A
Printed circuit board retention mechanism
Surface mount model
Voltage rating of 100 V ac
Temperature range from -25°C to 85°C
Wire size of 32 AWG to 24 AWG
Number of contacts varies from 2 to 16 pins
Contact material is brass
Tin plated contact
UL, CSA and TUV certified
### 2.0mm 线对板,JST PH 系列
触点数 7
极性 Male
触点电镀 Tin
额定电压AC 100 V
额定电流 2 A
绝缘电阻 1000 MΩ
排数 1
易燃性等级 UL 94 V-0
针脚数 7
额定电流Max 2 A
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 100 V
接触电阻Max 20 mΩ
安装方式 Surface Mount
封装 -
引脚间距 2.00 mm
长度 17.9 mm
宽度 5 mm
高度 6.6 mm
封装 -
引脚间距 2.00 mm
外壳颜色 Ivory
颜色 White
触点材质 Brass
工作温度 -25℃ ~ 85℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 -, 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
B7B-PH-SM4-TBLFSN JST 日本压着端子 | 当前型号 | 当前型号 |
B7B-PH-K-SLFSN 日本压着端子 | 类似代替 | B7B-PH-SM4-TBLFSN和B7B-PH-K-SLFSN的区别 |
B7B-PH-SM3-TB 日本压着端子 | 功能相似 | B7B-PH-SM4-TBLFSN和B7B-PH-SM3-TB的区别 |
