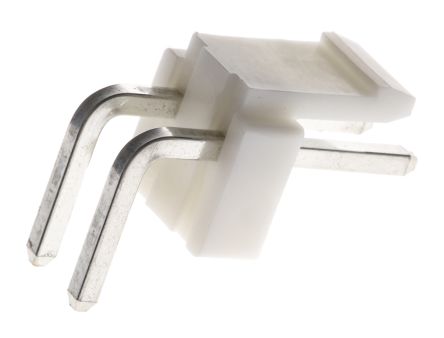

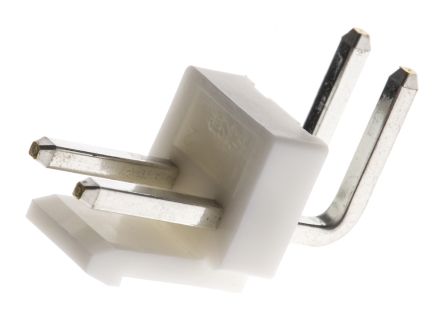

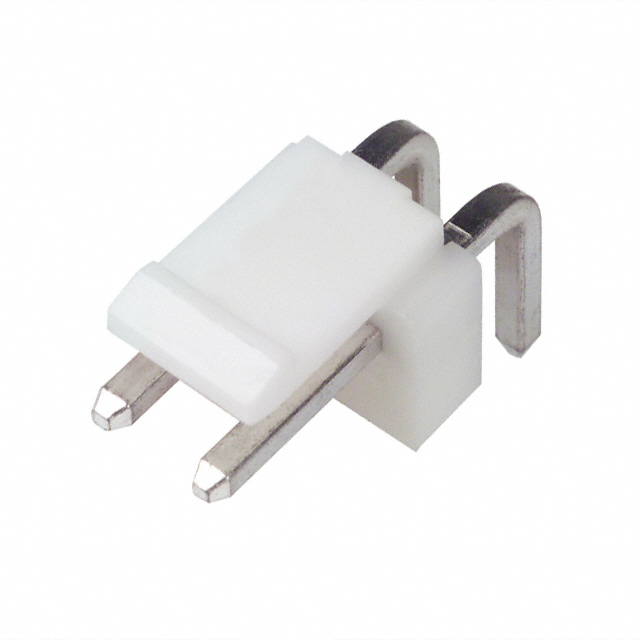

B2PS-VHLFSN

JST JAPAN SOLDERLESS TERMINALS  B2PS-VHLFSN  线至板连接器, 直角, VH系列, 2 触点, 针座, 3.96 mm, 压接, 1 排

VH 系列锁定印刷电路板管座

JST VH 系列锁定管座提供顶部接入和侧面接入类型，且具有本色（白色）UL 94V-0 额定模具和镀锡支柱。有关典型的匹配 VH 系列外壳和触点，请分别参见 RS 820-1172 和 820-1163。

得捷:
CONN HEADER R/A 2POS 3.96MM

欧时:
### 印刷电路板连接器 VH 底座These VH Series of Locking Headers are available in Top Entry and Side Entry types and are UL 94V-0 rated with a Natural White colour and Tin plated posts. For mating VH Series Housings and Contacts see stock number 820-1172 and 820-1163 typical respectively.### 3.96mm 线对线连接器 JST VH 系列The VH Series of 3.96mm pitch Wire-to-Board Connectors from JST are capable of carrying a large current in a compact size. Design features for the VH Series include box contacts, polarized housings and secure locking. 高可靠性、小尺寸、大数量连接器，用于印刷电路板，可实现大范围设备的连接，包括消费性电子设备的信号电路以及电源电路和输出电路。 额定电流 | 7.0 A 交流/直流（使用 AWG #18 时） ---|--- 额定电压 | 250V 交流/直流 工作温度范围 | -25 °C → +85 °C（包括通电时的温度升高值） 触点电阻 | 初始/小于等于 10 mΩ   | 环境测试后/小于等于 20 mΩ 绝缘电阻 | 至少 1000 MΩ Vs. 电压 | 1500 V 交流/1 分钟 线范围 | AWG #22 → #18 兼容的印刷板厚度 | 1.6 mm 已注册标准 | E 60389 认证   | LR20812 认证   | R75122（符合 DIN / VDE 0627 标准）

立创商城:
VH 3.96mm 1x2P

艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this wire to board B2PS-VH LFSN header connector from JST Corporation on your PCB today! This HDR connector&s;s 2 contacts that are made out of brass and plated with tin over copper. It has a right angle body orientation. This is a 1-row connector. Its pitch is 3.96 mm. It has a header type gender. It has a maximum voltage rating of 250 VDC|250VAC. This device has a maximum current rating of 10 A. This connector has an operating temperature of -25 to 85 °C. This product is 7.86 mm long, 8.5 mm tall and 14.9 mm deep. It uses the solder termination method. B2PS-VH LFSN is housed in white polyamide 6/6.

Verical:
Conn Wire to Board HDR 2 POS 3.96mm Solder RA Side Entry Thru-Hole Box

Newark:
# JST JAPAN SOLDERLESS TERMINALS  B2PS-VHLFSN  Wire-To-Board Connector, 3.96 mm, 2 Contacts, Header, VH Series, Through Hole, 1 Rows

CDI:
Header, Side Entry, 2Circuit, 5.08mmPitch
