BD48E30G-MTR

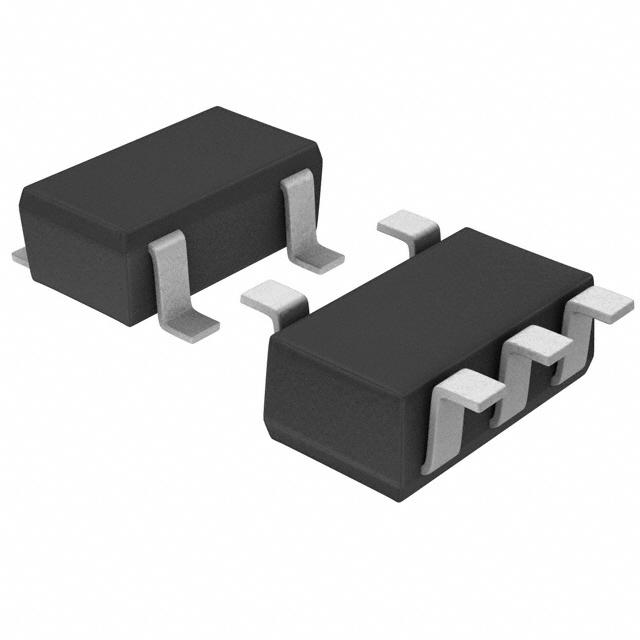

ROHM  BD48E30G-MTR  芯片, 电压探测器, AEC-Q100, 3V, SSOP-5

The is a standard open-drain voltage detector in 5 pin SSOP package. It is a highly accurate, ultra low current consumption voltage detector with N-channel open drain output. This voltage detector is used in circuits using microcontrollers or logic circuits that require a reset for automotive applications car navigation, car audio, meter panel, exterior lamp etc. It is typically used in single board computer and network attached storage applications.

.

Automotive grade AEC-Q100 qualified

.

3V detection voltage and ±1% high accuracy

.

Operating voltage of 0.95V at TA = 25°C to 105°C and 1.2V at TA = -40°C to 25°C

.

0.1µA leak current when OFF VDD=VDS=10V and ultra-low current consumption of 0.9µA

.

Detection voltage temperature coefficient of ±100ppm/°C at TA = -40°C to 105°C

.

Circuit current of 0.51µA VDD=VDET-0.2V, when ON & 0.75µA VDD=VDET+2.0V, when OFF

.

Reset active voltage range from 0.95V to 10V

.

Output delay time low to high of 100µs CL=100pF, RL=100Kohm, Vout=GND to 50%

.

Very small and low height package

.

Wide operating temperature range from -40°C to 105°C

ESD sensitive device, take proper precaution while handling the device.

The residue of flux may negatively affect product performance and reliability when highly active halogenous chlorine, bromine etc flux is used.
