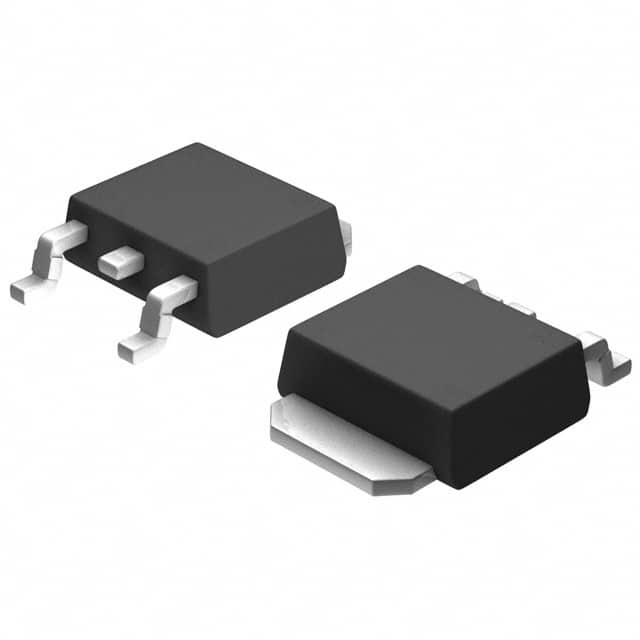

ROHM BD433M5FP-CE2 LDO稳压器 -固定, 4.6V-42V输入, 3.3Vnom/500 mA输出, TO-252-3 新
The is a 500mA 3.3V LDO regulator in 3 pin TO252 package. The BD433M5 is a low quiescent regulator featuring 45V absolute maximum voltage and output voltage accuracy of ±2% 3.3V, 500mA output current and 38µA current consumption. This regulator is ideal for applications requiring a direct connection to the battery and a low current consumption. A logical "HIGH" at the CTL enables the device and "LOW" at the CTL disables the device. Ceramic capacitors can be used for compensation of the output capacitor phase. Furthermore, it also features overcurrent protection to protect the device from damage caused by short-circuiting and an integrated thermal shutdown to protect the device from overheating at overload conditions.
This product is electrostatic sensitive product and it may be damaged due to electrostatic discharge. Please take proper caution.
The residue of flux may negatively affect product performance and reliability when highly active halogenous chlorine, bromine etc flux is used.
输出接口数 1
输出电压 3.3 V
输出电流 500 mA
针脚数 3
跌落电压 250 mV
输入电压Max 42 V
输入电压Min 4.6 V
输出电压Min 3.3 V
输出电流Max 0.5 A
工作温度Max 150 ℃
工作温度Min -40 ℃
耗散功率Max 1300 mW
精度 ±2 %
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
封装 TO-252-3
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Each
制造应用 车用, Power Management, Automotive, 电源管理
RoHS标准
含铅标准 无铅
