BD2269G-MGTR概述

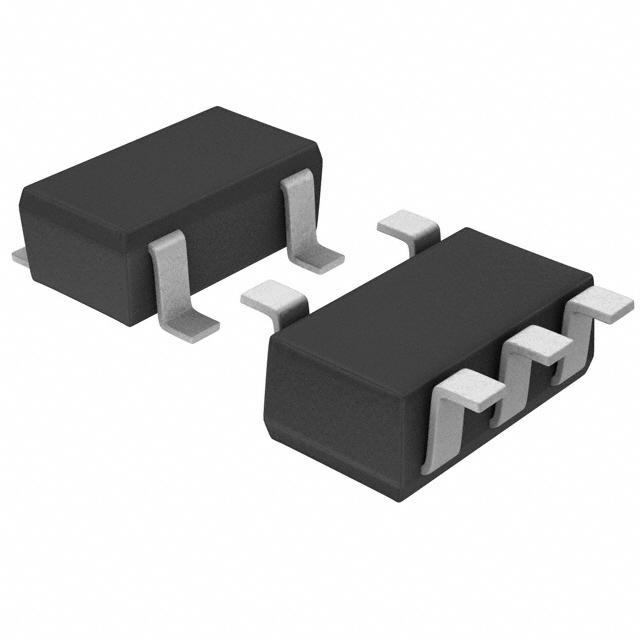

ROHM  BD2269G-MGTR  芯片, 电源负载开关, AEC-Q100, SSOP-5

The is a 1-channel, 1.3A current limit high side switch IC in 5 pin SSOP package. It is a low ON-resistance N-channel MOSFET high-side power switch optimized for Universal Serial Bus USB applications. BD2269G-M is equipped with the function of over-current detection, thermal shutdown, under-voltage lockout and soft-start. It is mainly used in car accessories, industrial applications.

.
Input voltage range from 2.7V to 5.5V
.
On resistance is 110mohm typ
.
Over current threshold is 1.15A min, 1.4A max
.
Operating current is 110µA and standby current is 0.01µA typ
.
Open-drain fault flag output
.
Output discharge function
.
Control input logic is active-low
.
Automotive grade AEC-Q100 qualified
.
Operating temperature range from -40°C to +85°C

This product is electrostatic sensitive product and it may be damaged due to electrostatic discharge. Please take proper caution.

The residue of flux may negatively affect product performance and reliability when highly active halogenous chlorine, bromine etc flux is used.

BD2269G-MGTR中文资料参数规格
技术参数

输出接口数 1

输入电压DC 5.50 V

针脚数 5

上升时间 1000 µs

输入电压Max 5.5 V

输入电压Min 2.7 V

输出电流Max 1.4 A

下降时间 1 µs

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 670 mW

输入电压 5.5 V

封装参数

安装方式 Surface Mount

引脚数 5

封装 SSOP-5

外形尺寸

封装 SSOP-5

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Each

制造应用 Automotive, 电源管理, 工业, Industrial, Power Management, 车用

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

数据手册

在线购买BD2269G-MGTR
型号: BD2269G-MGTR
制造商: ROHM Semiconductor 罗姆半导体
描述:ROHM  BD2269G-MGTR  芯片, 电源负载开关, AEC-Q100, SSOP-5
