Resistor; Thick Film; Res 1Ω; Pwr-Rtg 100W; Tol 10%; SMT; Screw Termination

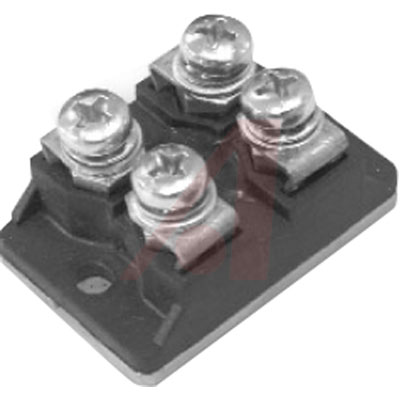

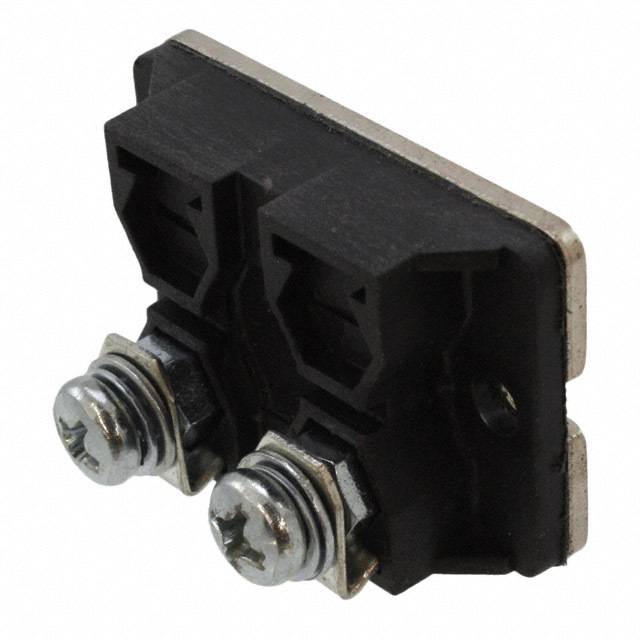

With less than 40 nH inductance and a 100 Watt power rating in an easy-mounting 38 mm × 25 mm Isotop case, the BDS100 offers high power density over a wide range of ohmic values 0.47 Ohms to 1 Megohms and benefits from 10 years experience in the field. Available in 6 resistor configurations with 2 or 4 easy to connect terminals, the resistors are made from quality materials for optimum reliability and stability with very low partial discharge. Tyco can test resistors to conform to relevant customer specifications, and will advise on the use of resistors for pulse energy and high voltage applications HV designs available. Resistors with alternative terminations or flying leads are available, and custom designs are welcome.
**Features:**
* 100 W in a 9.5 cm2 Footprint; Gives an Impressive Power Density of 10.5 W/cm2
* Virtually Inductance-Free; Inductance <40 nH
* Wide Resistance Range: 0.47Ω to 1 MΩ
* Coupled with 1% Tolerance Gives Ultimate Design Flexibility
* Multiple Terminal Configurations and Multi-Resistor Packages; The Space Saving Solution
* Partial Discharge <10 pC at 2 kV; Guaranteeing Quality,Reliability and Long Life
