BTB08-600CW

无缓冲器™ ，逻辑层次和水平8的三端双向可控硅 Snubberless?, logic level and standard 8 A Triacs

DESCRIPTION

The BTA/BTB08 BW/CW triac family are high performance glass passivated chips technology. The SNUBBERLESS concept offer suppression of RC network and it is suitable for application such as phase control and static switching on in ductive or resistive load.

FEATURES

. HIGH COMMUTATION : dI/dtc > 7A/ms without snubber

. HIGH SURGE CURRENT : ITSM = 80A

. VDRM UP TO 800V

. BTA Family : INSULATING VOLTAGE = 2500VRMS UL RECOGNIZED : E81734

Chip1Stop:

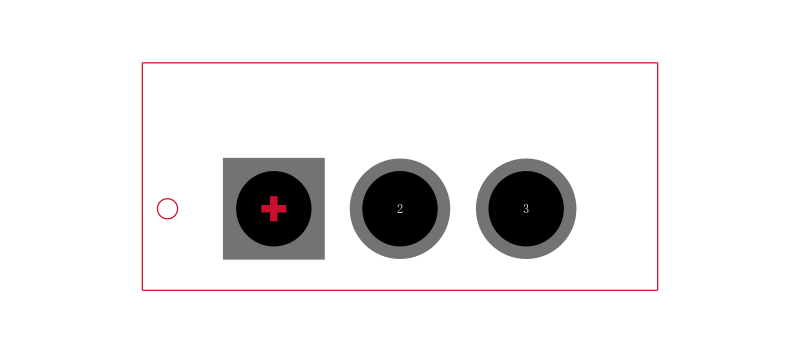

Thyristor TRIAC 600V 84A 3-Pin 3+Tab TO-220AB
