BTS7741G

Smart Motorbridges + Driver ICs - 210mOhm TrilithIC Open Load in Off

Features

• Quad D-MOS switch driver

• Free configurable as bridge or quad-switch

• Optimized for DC motor management applications

•Low RDS ON: 110 mΩhigh-side switch, 100 mΩ low side switch typical values @ 25°C

• Maximum peak current: typ. 10 A @ 25°C

• Very low quiescent current: typ. 5 µA @ 25 °C

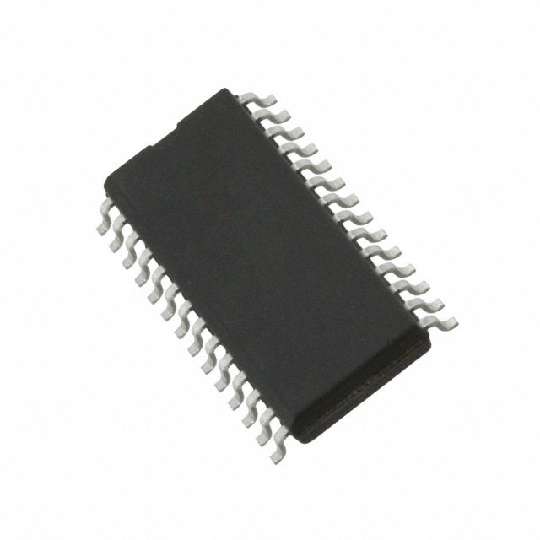

• Small outline, enhanced power P-DSO-package

• Full short-circuit-protection

• Operates up to 40 V

• Status flag diagnosis

• Overtemperature shut down with hysteresis

• Internal clamp diodes

• Open load detection in Off-mode

• Under-voltage detection with hysteresis

• PWM frequencies up to 1 kHz
