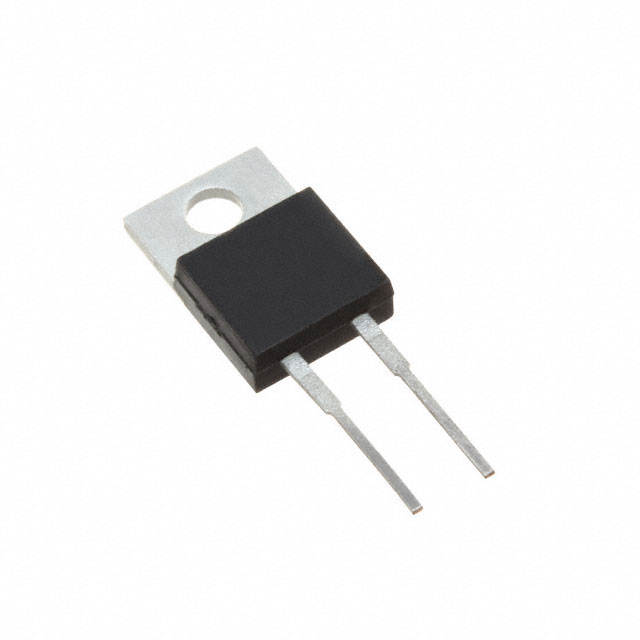

BY229-200-E3/45

Diode Switching 200V 8A 2Pin2+Tab TO-220AC Tube

Fast Switching Plastic Rectifier

FEATURES

• Glass passivated chip junction

• Superfast recovery time for high efficiency

• Low leakage current

• High forward surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C for TO-263AB package

• Solder dip 260 °C, 40 s for TO-220AC and ITO-220AC package

• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC

TYPICAL APPLICATIONS

For use in fast switching rectification of power supply, inverters, converters and freewheeling diodes application.
