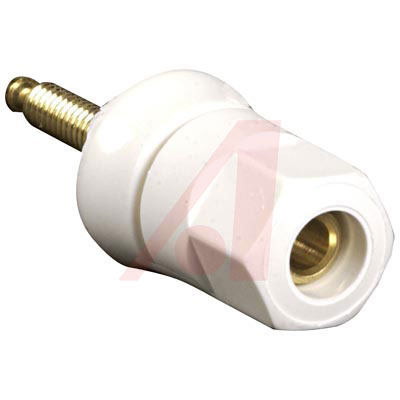

Binding Post, Single; Standard Nut; 30A; 1000V; Gold Plated Brass; White; Hex
1000 V, UL Recognized, Standard and Miniature Single Assembly 5-Way® Binding Posts
Types prefixed BP21 are miniature size rated 15 A; all others are standard sized rated 30 A. All are rated for 1000 V working. Types listed have gold plated, nickel plated and tin plated brass current carrying parts and nylon plastic insulating parts. All parts meet NAFTA requirements.
Binding posts have positive-stop captive thumbnuts that allow space to make connections yet reduce the likelihood of accidentally contacting current carrying parts.
额定电压 1000 V
颜色 White
Brand/Series 5-Way Series
Color White
Head Shape Hex
Length, Overall 1.919 in.
Material, Body Gold Plated Brass
Material, Insulation Nylon Plastic per MIL-P20693A, Type IV
Standards UL Recognized
Thread, Post 8-32
Type Binding Post
Voltage Rating 1000 V
RoHS标准 RoHS Compliant
