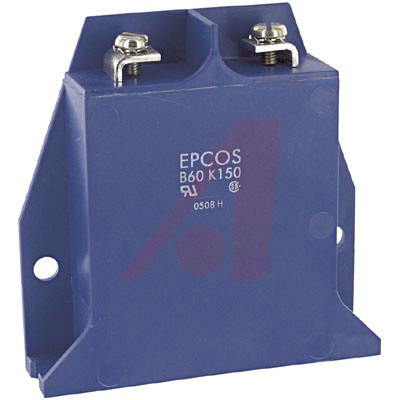

Varistor, Circuit Protection; 150Vrms/200VDC; 395V; 70000A; Metal Oxide; Screw; 1.6W
Applications requiring protection at operating voltage levels as low as 11 volts and as high as 1100 volts with energies rated up to 15000 joules, depending on the device selected.
**Typical Protection Applications: **
* Protection of Semiconductors Diodes, Transistors, Thyristors, ICs, Etc.
* Appliances Connected to 110 V or 220 VAC
* Industrial Equipment Vulnerable to Transients on the AC Power Line Computers, Traffic Controls, Motor Controllers, Etc.
* Protection of Equipment Connected to Telephone or Signal Lines, Such as Security Systems, Railroad Equipment, Fire Alarm Systems, Etc.
* Arc Suppression Across Relay and Switch Contacts
* Power Control Equipment for Power Distribution Lines
* GFI Ground Fault Interrupters
**Features:**
* Nanosecond Switching Response Time, <15 ns, with Minimal Lead Length
* High Transient Current Capability Up to 100,000 Amps
* No Extinguishing or Follow-On Current Limitations
* Compatible with Automatic Insertion; Tape and Reel Configuration Available on S05, S07, S10 and S14 Series
**Benefits:**
* Eliminates Dangerous Voltage Transients
* Lowers Overall System Costs by Reducing Downtime and Maintenance Costs
* Improves Component and System Reliability
* Reduces EMP/RFI Interference
