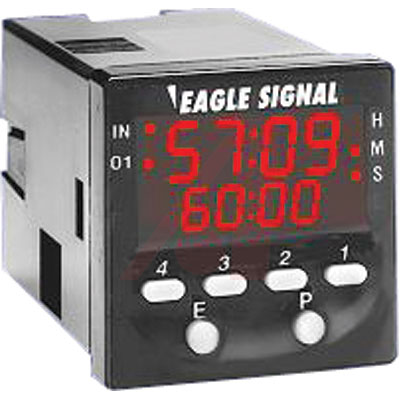

B506-5001

Timer; 5A; 90 to 240VAC; Digital; Multi-Function; LED; 10VA @ 240VAC; DP

Series features a compact 1⁄16 DIN housing and precise digital setting. Timers are multifunctional and have straightforward button-per-digit interface. Programmable to perform On-Delay, Off-Delay, Interval or Repeat Cycle timing functions. Capable of performing the function of two separate timers. All programming is done from the front panel.

.

*Display:** Dual-line LCD. **Features:**

* Field Programmable for One of 5 Operating Modes

* 5 Selectable Time Ranges with Resolution Down to 0.01 Seconds

* High Visibility Display Indicates Both Process Time and Preset Value

* Simple Button Per Digit Interface

* Programmable Security Levels Prevent Unauthorized Setpoint or Program Changes

* Universal AC Power Supply 90-264 VAC and Low Voltage 24 VAC/VDC Models Available

* External Start and Reset Inputs

* IEC IP65 Rated Front Panel

* Industry Standard 11-Pin Socket
