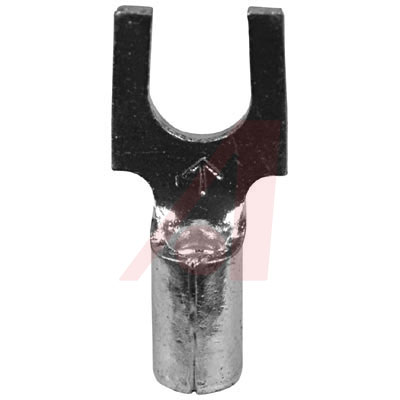

Fork Terminal 14-16AWG 16.51mm 7.62mm Tin
Tin Plating, ETP Copper Terminal, Highland™Terminals, Fork Terminal
Allied Electronics:
Terminal, Fork; Non-Insulated Block Fork; 16 to 14 AWG; 0.09 in.; ETP Copper; 8
Chip1Stop:
Fork Terminal 14-16AWG 16.51mm 7.62mm Tin
MASTER:
Fork Terminal 14-16AWG 16.51mm 7.62mm Tin
Electro Sonic:
Fork Terminal 14-16AWG 16.51mm 7.62mm Tin
长度 16.51 mm
宽度 7.62 mm
Angle Straight
Brand/Series Scotchlok Series
Color Copper
Connector Type Non-Insulated Block Fork
Contact Plating Tin
Diameter, Insulation 0.09 in.
Diameter, Stud 0.3 in.
Finish Tin
Insulation Type Non-Insulated
Length, Overall 0.65 "
Material ETP Copper
Material, Contact ETP Copper
Package Quantity 50⁄Bag, 10 Bags⁄Case
Primary Type Fork
Shape Fork
Size, Stud 8
Special Features Butted Seam, One Barrel
Standards UL Listed and CSA Certified
Termination Crimp
Thickness, Material 0.03 in.
Width, Overall 0.3 "
Wire Size 16 to 14 AWG
RoHS标准 Non-Compliant
