BC7-30-01-P01

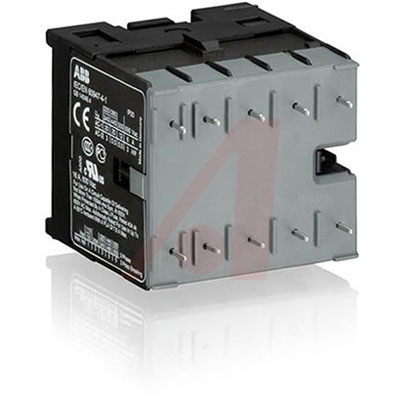

BC7-30-01-P01图片1
BC7-30-01-P01图片2
BC7-30-01-P01图片3
BC7-30-01-P01概述

BC7 3Pole Contactor, 12A, 5.5kW, 24V dc Coil

**BC6/BC7 Series Contactors**

Series BC mini contactors are ideally suited for reliability is a must and space is a limited. They are suitable for many applications and can be used in residential, commercial or industrial buildings for the control of single or 3phase loads, or switching of control signals. The BC series 3 pole contactors feature a silent hum free coil, a switch position indicator and screw terminal connections.

BC7-30-01-P01中文资料参数规格
技术参数

额定电压DC 690 V

额定电压AC 440 V

触点额定电流 12 A

线圈电压 24 VDC

额定电流Max 12 A

线圈电压DC 24 V

额定功率Max 5.5 KW

额定电压DC Max 690 V

额定电压AC Max 440 V

封装参数

安装方式 Through Hole

外形尺寸

高度 45.5 mm

物理参数

工作温度 -20℃ ~ 55℃

符合标准

RoHS标准 Non-Compliant

数据手册

在线购买BC7-30-01-P01
型号: BC7-30-01-P01
制造商: ABB
描述:BC7 3Pole Contactor, 12A, 5.5kW, 24V dc Coil
