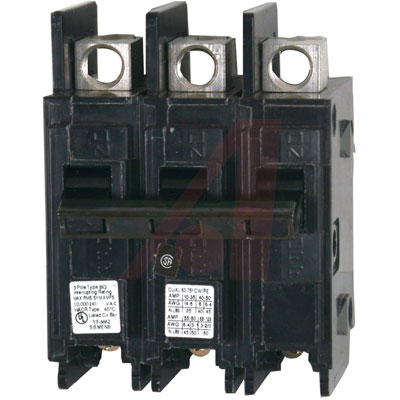

BREAKER 100A 3P 240V 22K BQ
Lug-In/Lug-Out with INSTA-WIRE Molded Case Circuit Breakers
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple file of the breaker"s operating handle restores the circuit.
All BQ/BQH/HBQ circuit breakers are supplied with load side lugs. All standard circuit breakers are calibrated for 40°C maximum ambient application.
Features:
BQ 125A Frame
额定电流 100 A
额定电压 240 VAC
Actuator Type Handle
Brand/Series BQ Series
Current Rating 100 A
Dimensions 3 L x 3 W x 4 H in.
Mounting Type Panel Mount
Number of Poles 3 Pole
Primary Type Circuit Breaker
Special Features Finger Safe Terminal Shield
Termination Screws
Type Thermal/Magnetic
Voltage Rating 240 VAC
