BFS17S

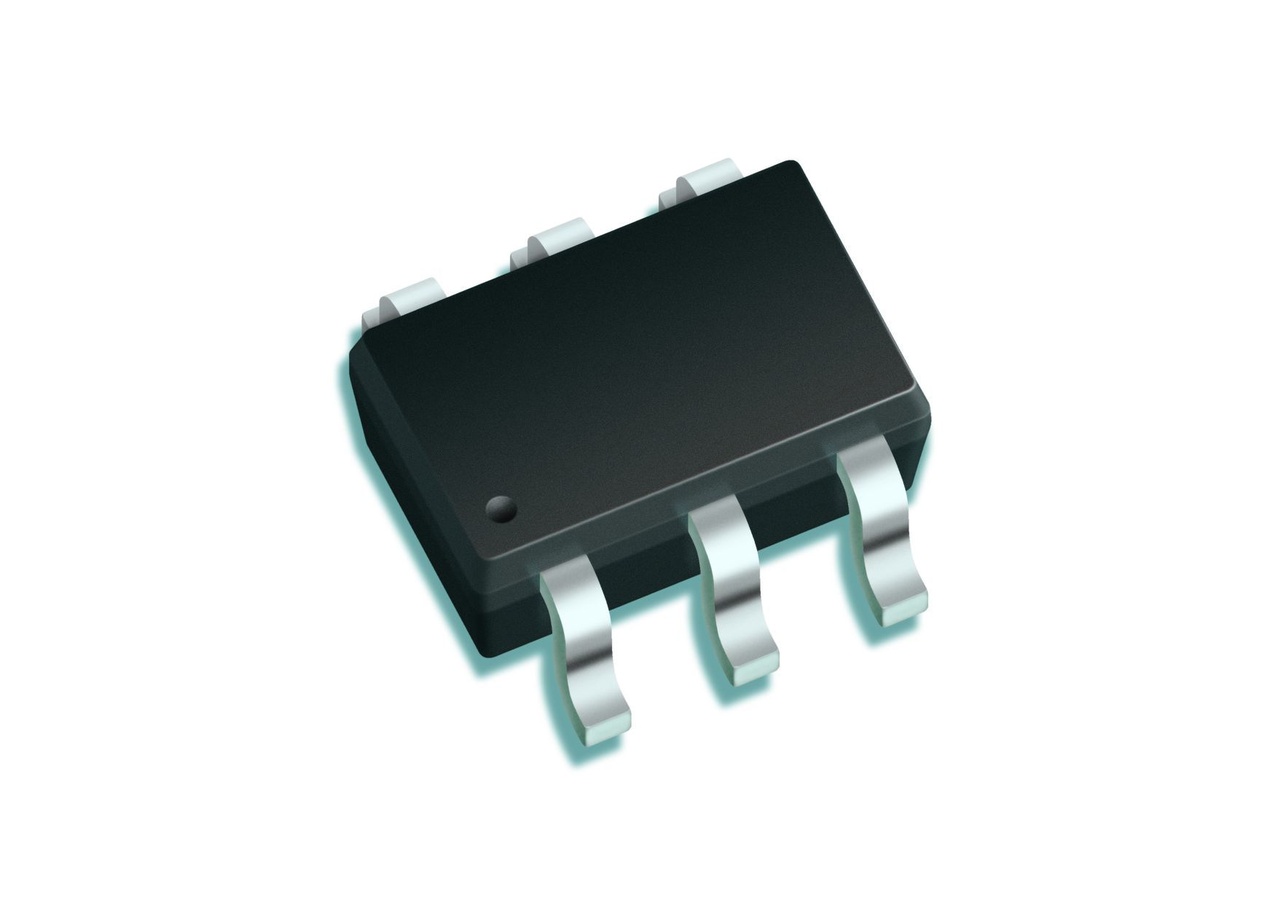

BFS17S NPN三极管 25V 25mA 2.5GHz 20~150 400mV/0.4V SOT-363/SC70-6 marking/标记 MC 宽带放大器

集电极-基极反向击穿电压VBRCBOCollector-Base VoltageVCBO | 25V \---|--- 集电极-发射极反向击穿电压VBRCEOCollector-Emitter VoltageVCEO | 15V 集电极连续输出电流ICCollector CurrentIC | 25mA 截止频率fTTranstion FrequencyfT | 2.5GHz 直流电流增益hFEDC Current GainhFE | 20~150 管压降VCE（sat）Collector-Emitter Saturation Voltage | 400mV/0.4V 耗散功率PcPower Dissipation | 280mW/0.28W Description & Applications | NPN Silicon RF Transistor For broadband amplifiers up to 1 GHz at collector currents from 1 mA to 20 mA 描述与应用 | NPN硅RF晶体管 对于宽带放大器高达1 GHz的集电极电流从1 mA到20 mA
