Overview
The is a Low Noise Amplifier LNA for GNSS receiver applications. It comes as extremely small and thin Wafer Level Chip Scale Package WLCSP. The BGU8006 requires one external matching inductor and one external decoupling capacitor.
The BGU8006 adapts itself to the changing environment resulting from co-habitation of different radio systems in modern cellular handsets. It has been designed for low power consumption and optimal performance when jamming signals from co-existing cellular transmitters are present. At low jamming power levels it delivers 17.2 dB gain at a noise figure of 0.60 dB. During high jamming power levels, resulting for example from a cellular transmit burst, it temporarily increases its bias current to improve sensitivity.
MoreLess
## Features
* Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
* Noise figure NF = 0.60 dB
* Gain 17.2 dB
* High input 1 dB compression point of -7.5 dBm
* High out of band IP3i of 6 dBm
* Supply voltage 1.5 V to 3.1 V
* Optimized performance at very low 3.6 mA supply current
* Power-down mode current consumption < 1 μA
* Integrated temperature stabilized bias for easy design
* Requires only one input matching inductor and one supply decoupling capacitor
* Input and output DC decoupled
* ESD protection on all pins HBM > 2 kV
* Integrated matching for the output

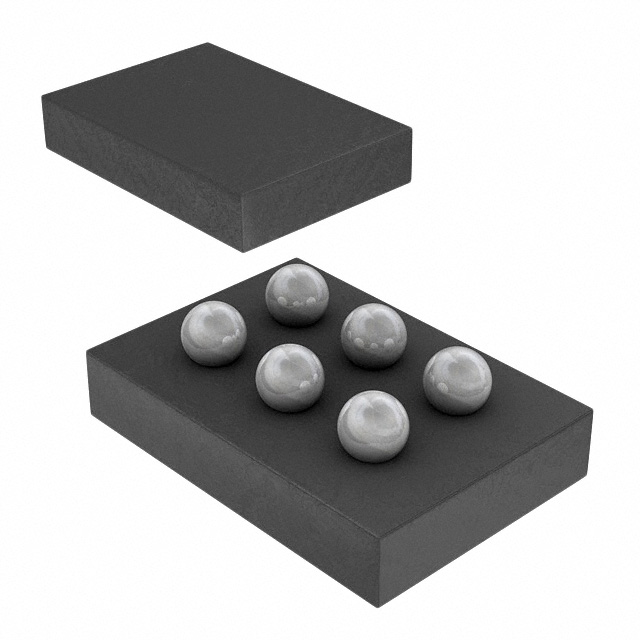

* Extremely small Wafer Level Chip Scale Package WLCSP 0.65 mm x 0.44 mm x 0.2 mm; 6 solder bumps; 0.22 mm bump pitch
* 180 GHz transit frequency - SiGe:C technology
## Target Applications
* LNA for GPS, GLONASS, Galileo and Compass BeiDou in smart phones, feature phones, tablet, digital still cameras, digital video cameras, RF front-end modules, complete GNSS modules and personal health applications.
