BU4S11

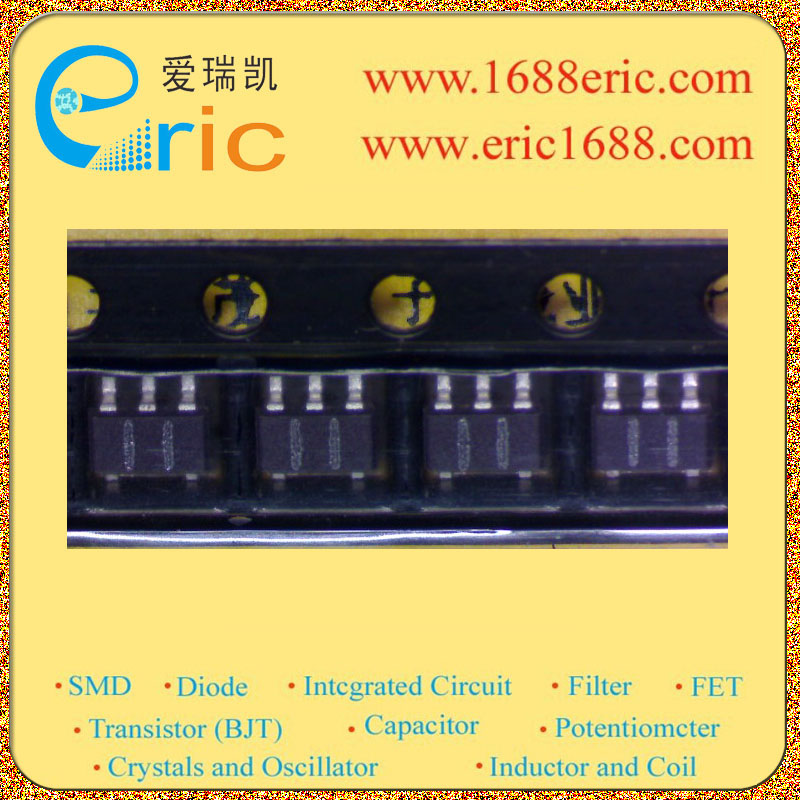

IC 与非门 BU4S11 SOT-153/SMP5 marking/标记 11

逻辑类型Logic Type| 与非门 NAND Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 3V~16V 静态电流IqCurrent - Quiescent Max| 1uA 输出高，低电平电流Current - Output High, Low| -3.4mA，3.4mA 低逻辑电平Logic Level - Low| 1.5V~4V 高逻辑电平Logic Level - High| 3.5V~11V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 30ns @ 15V，50pF Description & Applications| Single 2-input NAND gate；Features Low current dissipation Super-mini mold package designed for surface mounting Wide range of operating power supply voltage Capable of driving two L-TTL inputs and one LS-TTL input directly 描述与应用| 单路双输入与非门;特性 低电流损耗 超迷你模具封装专为表面安装 工作电源电压范围宽 能够直接驱动两个L-TTL输入和一个LS-TTL输入
