稳压二极管 200mW 8.2V Zener
Features
• Planar Die Construction
• 200mW Power Dissipation
• Zener Voltages from 2.4V – 39V
• Ultra-Small Surface Mount Package
• Lead Free/RoHS Compliant Note 7
• "Green" Device Notes 1 and 2
立创商城:
8.2V 200mW
得捷:
DIODE ZENER 8.2V 200MW SOT323
贸泽:
稳压二极管 200mW 8.2V Zener
艾睿:
Check out this perfect BZX84C8V2W-7-F zener diode from Diodes Zetex for operating in the reverse breakdown region. Its maximum leakage current is 0.7 μA. Its maximum power dissipation is 200 mW. Its test current is 5 mA. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This zener device has a nominal voltage of 8.2 V and a voltage tolerance of 6%. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 125 °C.
安富利:
Diode Zener Single 8.2V 6% 200mW 3-Pin SOT-323 T/R
Chip1Stop:
Diode Zener Single 8.2V 6% 200mW 3-Pin SOT-323 T/R
TME:
Diode: Zener; 200mW; 8.2V; SMD; reel, tape; SOT323
Verical:
Diode Zener Single 8.2V 6% 200mW Automotive 3-Pin SOT-323 T/R
额定电压DC 8.20 V
容差 ±6 %
额定功率 200 mW
输出电流 ≤38.0 mA
正向电压 900mV @10mA
耗散功率 200 mW
测试电流 5 mA
稳压值 8.2 V
正向电压Max 900mV @10mA
额定功率Max 200 mW
工作温度Max 125 ℃
工作温度Min -65 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3

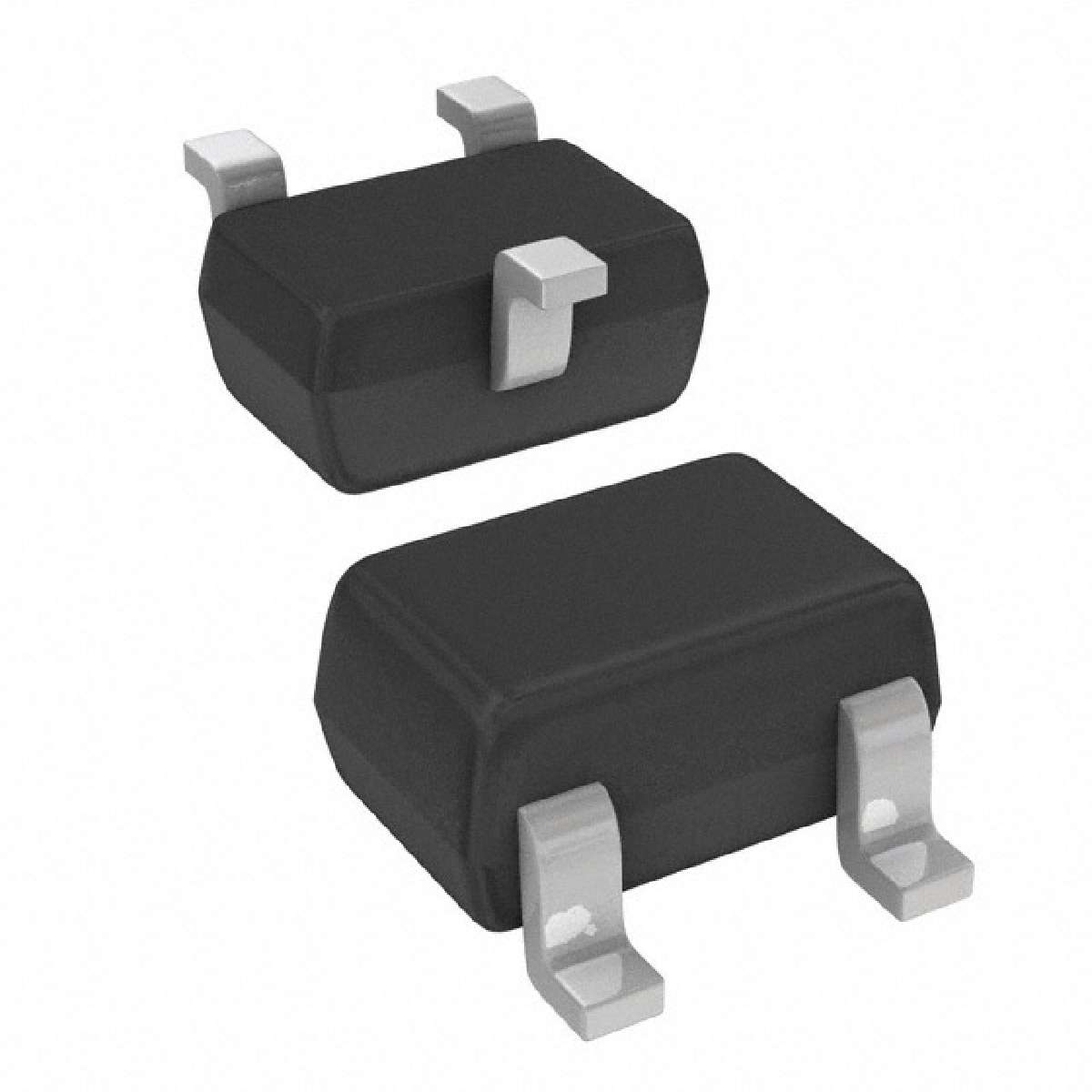

封装 SOT-323-3
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SOT-323-3
工作温度 -65℃ ~ 125℃
温度系数 4.7 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BZX84C8V2W-7-F Diodes 美台 | 当前型号 | 当前型号 |
BZX84C8V2W-7 美台 | 类似代替 | BZX84C8V2W-7-F和BZX84C8V2W-7的区别 |
CMSZDA8V2 Central Semiconductor | 功能相似 | BZX84C8V2W-7-F和CMSZDA8V2的区别 |
BZX84C8V2W-TP 美微科 | 功能相似 | BZX84C8V2W-7-F和BZX84C8V2W-TP的区别 |
