稳压二极管
稳压
得捷:
DIODE ZENER 10V 300MW SOD523
立创商城:
10V 300mW
贸泽:
稳压二极管 300mW 10V Zener AEC-Q101 Qualified
艾睿:
If your circuit requires a diode to operate in the reverse breakdown region, then this BZT52C10T-7 zener diode from Diodes Zetex is exactly what you need. Its maximum power dissipation is 300 mW. Its test current is 5 mA. Its maximum leakage current is 0.2 μA. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This zener diode has an operating temperature range of -65 °C to 150 °C. It is made in a single configuration. This zener device has a nominal voltage of 10 V and a voltage tolerance of 6%.
Allied Electronics:
10V 6% 300mW Zener Diode SOD-523
安富利:
Diode Zener Single 10V 6% 300mW 2-Pin SOD-523 T/R
Chip1Stop:
Diode Zener Single 10V 6% 300mW 2-Pin SOD-523 T/R
TME:
Diode: Zener; 300mW; 10V; SMD; reel, tape; SOD523
Verical:
Diode Zener Single 10V 6% 300mW 2-Pin SOD-523 T/R
Win Source:
DIODE ZENER 10V 300MW SOD523
容差 ±6 %
额定功率 300 mW
针脚数 2
正向电压 0.9 V
耗散功率 300 mW
测试电流 5 mA
稳压值 10 V
正向电压Max 900mV @10mA
额定功率Max 300 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 300 mW
安装方式 Surface Mount
引脚数 2

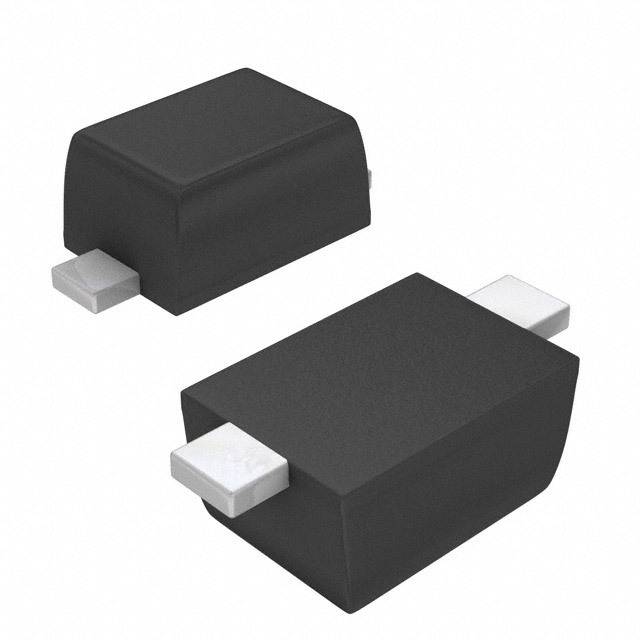

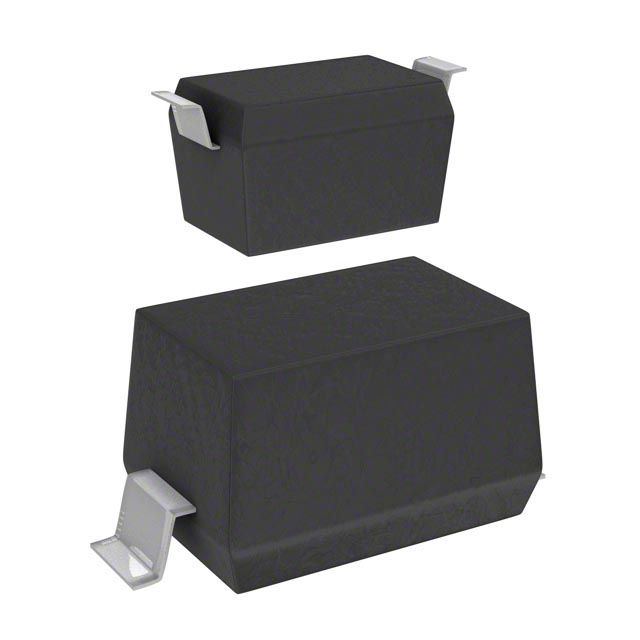

封装 SOD-523-2
长度 1.3 mm
宽度 0.9 mm
高度 0.7 mm
封装 SOD-523-2
工作温度 -65℃ ~ 150℃
温度系数 6.25 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BZT52C10T-7 Diodes 美台 | 当前型号 | 当前型号 |
BZT52C20T-7 美台 | 类似代替 | BZT52C10T-7和BZT52C20T-7的区别 |
BZT52C18T-7 美台 | 类似代替 | BZT52C10T-7和BZT52C18T-7的区别 |
BZT52C24T-7 美台 | 类似代替 | BZT52C10T-7和BZT52C24T-7的区别 |
