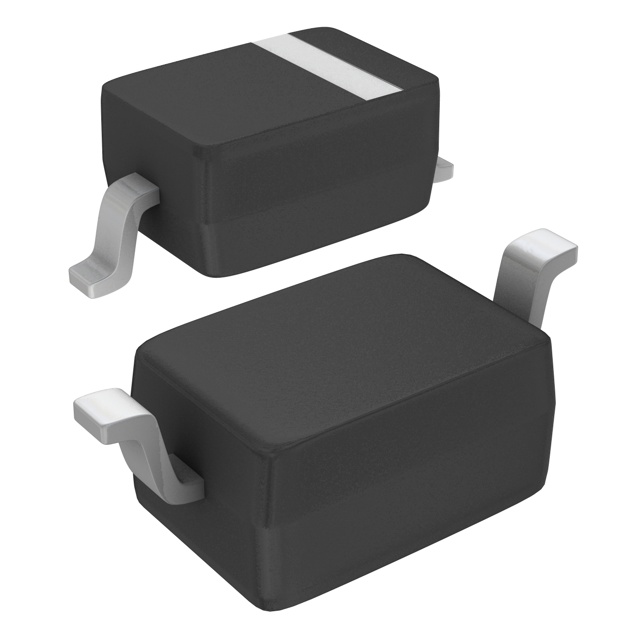

DiodesZetex BZT52C20S-7-F 1 齐纳二极管, 单路, 20V 6% 200 mW 表面贴装 2-Pin SOD-323
- 齐纳 ±6% 表面贴装型 SOD-323
得捷:
DIODE ZENER 20V 200MW SOD323
立创商城:
20V 200mW
艾睿:
This BZT52C20S-7-F zener diode from Diodes Zetex will allow you to run it in the reverse direction. Its maximum power dissipation is 200 mW. Its test current is 5 mA. Its maximum leakage current is 0.1 μA. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration. This zener device has a nominal voltage of 20 V and a voltage tolerance of 6%.
Allied Electronics:
20V 6% 200mW Zener Diode SOD-323
安富利:
Diode Zener Single 20V 6% 200mW 2-Pin SOD-323 T/R
Chip1Stop:
Diode Zener Single 20V 6% 200mW 2-Pin SOD-323 T/R
TME:
Diode: Zener; 200mW; 20V; SMD; reel, tape; SOD323
Verical:
Diode Zener Single 20V 6% 200mW Automotive 2-Pin SOD-323 T/R
Win Source:
DIODE ZENER 20V 200MW SOD323
额定电压DC 20.0 V
容差 ±6 %
额定功率 200 mW
输出电流 ≤50.0 mA
正向电压 0.9 V
耗散功率 200 mW
测试电流 5 mA
稳压值 20 V
正向电压Max 900mV @10mA
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323
长度 1.8 mm
宽度 1.4 mm
高度 1 mm
封装 SOD-323
工作温度 -65℃ ~ 150℃
温度系数 16.2 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BZT52C20S-7-F Diodes 美台 | 当前型号 | 当前型号 |
BZT52C20S-7 美台 | 类似代替 | BZT52C20S-7-F和BZT52C20S-7的区别 |
MM3Z20VT1G 安森美 | 功能相似 | BZT52C20S-7-F和MM3Z20VT1G的区别 |
BZT52C20S-TP 美微科 | 功能相似 | BZT52C20S-7-F和BZT52C20S-TP的区别 |
