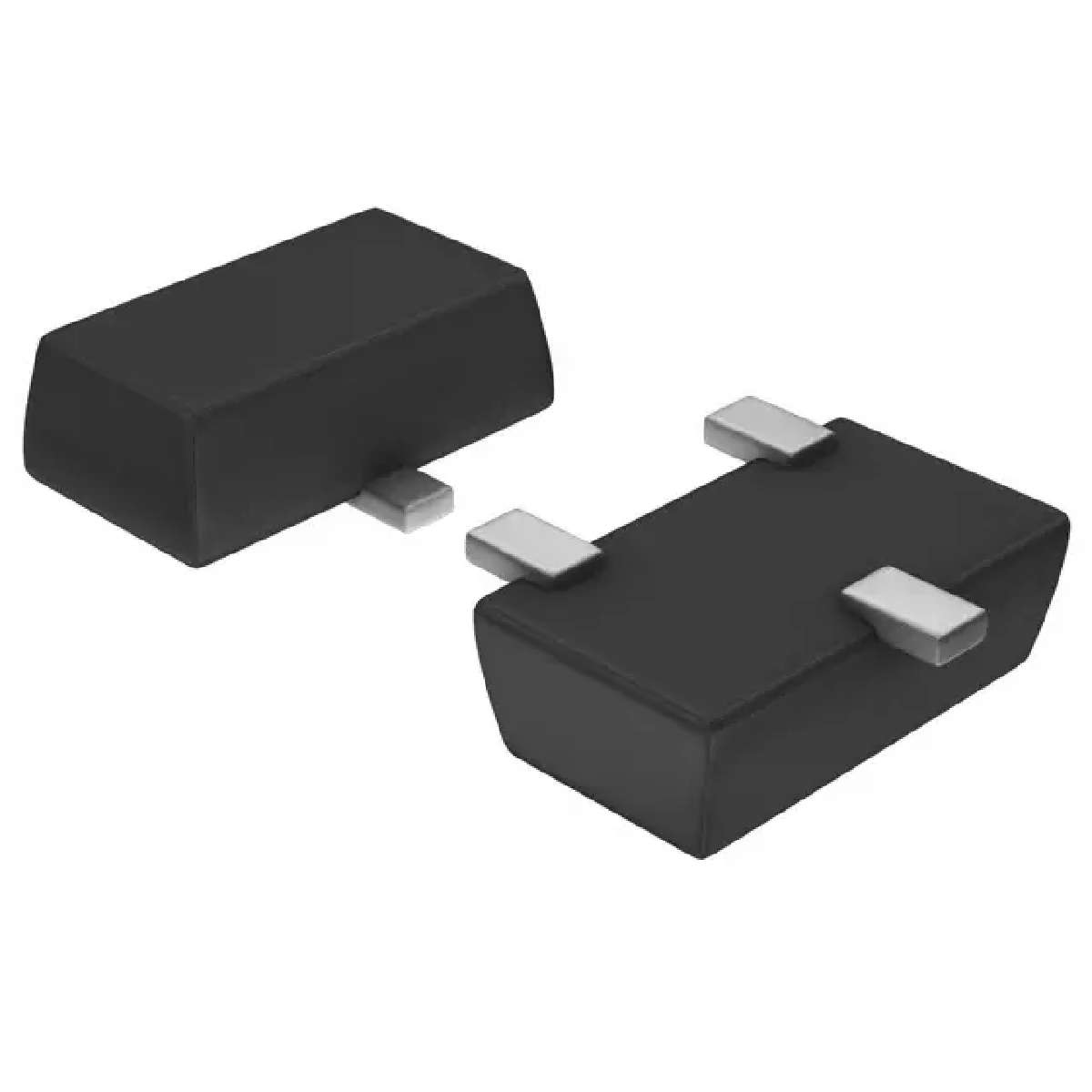

BAS20 系列 2.5 A 200 V 250 mW 表面贴装 快速 开关二极管 - SOT-23
• Fast Switching Speed
• Surface Mount Package Ideally Suited for Automated Insertion
• For General Purpose Switching Applications
•High Conductance
• Lead, Halogen and Antimony Free, RoHS Compliant “Green” Device Notes 1 and 2
• Qualified to AEC-Q101 Standards for High Reliability
立创商城:
150V 200mA 50ns
得捷:
DIODE GEN PURP 150V 200MA SOT23F
艾睿:
Rectifier Diode Small Signal Switching 200V 0.4A 50ns 3-Pin SOT-23 T/R
安富利:
Diode Switching 200V 0.4A 3-Pin SOT-23 T/R
富昌:
BAS20 系列 2.5 A 200 V 250 mW 表面贴装 快速 开关二极管 - SOT-23
Chip1Stop:
Diode Switching 200V 0.4A 3-Pin SOT-23 T/R
Verical:
Rectifier Diode Small Signal Switching 200V 0.4A 50ns 3-Pin SOT-23 T/R
Win Source:
DIODE GP 150V 200MA SOT23-3
电容 5.00 pF
额定功率 350 mW
输出电流 ≤200 mA
正向电压 1.25V @200mA
极性 Standard
耗散功率 250 mW
热阻 500℃/W RθJA
反向恢复时间 50 ns
正向电流 400 mA
正向电压Max 1.25V @200mA
正向电流Max 400 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
宽度 1.4 mm
封装 SOT-23-3
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAS20-7-F Diodes 美台 | 当前型号 | 当前型号 |
BAS20-7 美台 | 类似代替 | BAS20-7-F和BAS20-7的区别 |
BAS20-TP 美微科 | 功能相似 | BAS20-7-F和BAS20-TP的区别 |
BAS20,235 恩智浦 | 功能相似 | BAS20-7-F和BAS20,235的区别 |
