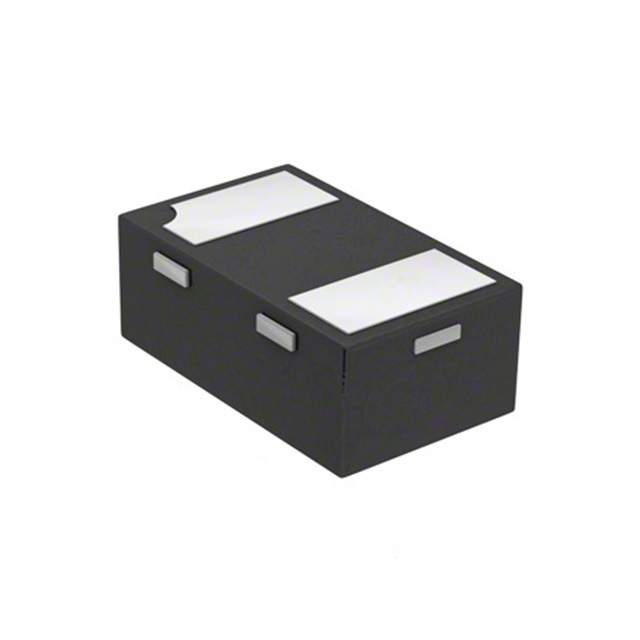

BZT52C5V6LP-7 编带
- 齐纳 5.6 V 250 mW ±7% 表面贴装型 X1-DFN1006-2
得捷:
DIODE ZENER 5.6V 250MW 2DFN
立创商城:
5.6V 250mW
贸泽:
Zener Diodes 250mW 5.6V
艾睿:
Check out this perfect BZT52C5V6LP-7 zener diode from Diodes Zetex for operating in the reverse breakdown region. Its test current is 5 mA. Its maximum power dissipation is 250 mW. Its maximum leakage current is 1 μA. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This zener diode has an operating temperature range of -65 °C to 150 °C. This zener device has a nominal voltage of 5.6 V and a voltage tolerance of 7%. It is made in a single configuration.
安富利:
Diode Zener Single 5.6V 7% 250mW 2-Pin DFN T/R
Chip1Stop:
Diode Zener Single 5.6V 7% 250mW 2-Pin DFN T/R
TME:
Diode: Zener; 250mW; 5.6V; SMD; reel, tape; X1-DFN1006-2
Win Source:
DIODE ZENER 5.6V 250MW 2DFN
额定电压DC 5.60 V
容差 ±7 %
额定功率 250 mW
输出电流 ≤50.0 mA
正向电压 900mV @10mA
耗散功率 250 mW
测试电流 5 mA
稳压值 5.6 V
正向电压Max 900mV @10mA
额定功率Max 250 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 2
封装 DFN-2
长度 1 mm
宽度 0.6 mm
高度 0.47 mm
封装 DFN-2
工作温度 -65℃ ~ 150℃
温度系数 0.25 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
香港进出口证 NLR
