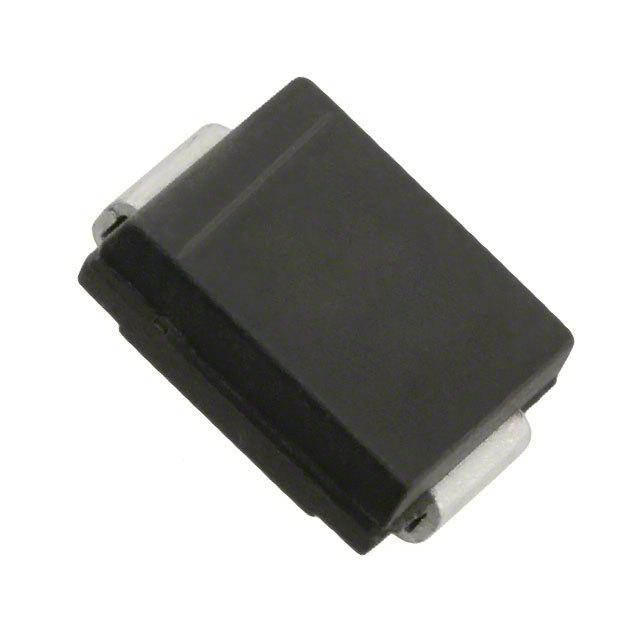

Diode Schottky 30V 3A 2Pin SMC
肖特基 30 V 3A 表面贴装型 SMC
得捷:
DIODE SCHOTTKY 30V 3A SMC
立创商城:
30V 3A 500mV@3A
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode B330-13-F rectifier from Diodes Zetex. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its peak non-repetitive surge current is 100 A, while its maximum continuous forward current is 3 A. This rectifier has a minimum operating temperature of -55 °C and a maximum of 125 °C. It is made in a single configuration.
Allied Electronics:
Diode Schottky 30V 3A 2Pin SMC
安富利:
Diode Schottky 30V 3A 2-Pin SMC T/R
Chip1Stop:
Diode Schottky 30V 3A Automotive 2-Pin SMC T/R
Verical:
Diode Schottky 30V 3A Automotive 2-Pin SMC T/R
儒卓力:
**SCHOTTKY-DIODE 3A 30V SMC **
Win Source:
DIODE SCHOTTKY 30V 3A SMC
额定电压DC 30.0 V
额定电流 3.00 A
电容 250 pF
输出电流 ≤3.00 A
正向电压 0.5 V
极性 Standard
热阻 90℃/W RθJA
反向恢复时间 4 ns
正向电流 3000 mA
最大正向浪涌电流（Ifsm） 100 A
正向电压Max 500mV @3A
正向电流Max 3000 mA
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 SMC
封装 SMC
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
B330-13-F Diodes 美台 | 当前型号 | 当前型号 |
B330B-13-F 美台 | 类似代替 | B330-13-F和B330B-13-F的区别 |
SK33-7-F 美台 | 类似代替 | B330-13-F和SK33-7-F的区别 |
B330A-13 美台 | 类似代替 | B330-13-F和B330A-13的区别 |
