BAT54CT-7

Diode Schottky 30V 0.2A Automotive 3Pin SOT-523 T/R

Features

· Ultra-Small Surface Mount Package

· Low Forward Voltage Drop

· Fast Switching

· PN Junction Guard Ring for Transient and ESD Protection

Mechanical Data

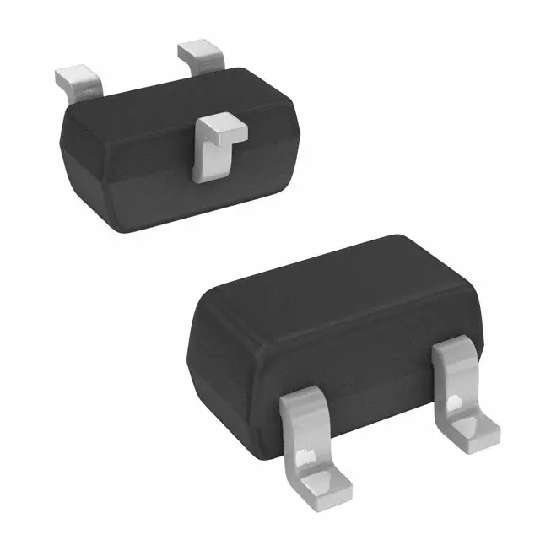

· Case: SOT-523, Molded Plastic

· Case material - UL Flammability Rating 94V-0

· Moisture sensitivity: Level 1 per J-STD-020A

· Terminals: Solderable per MIL-STD-202, Method 208

· Polarity: See Diagrams Below

· Marking: See Diagrams Below & Page 2

· Weight: 0.002 grams approx.

· Ordering Information, see Page 2
