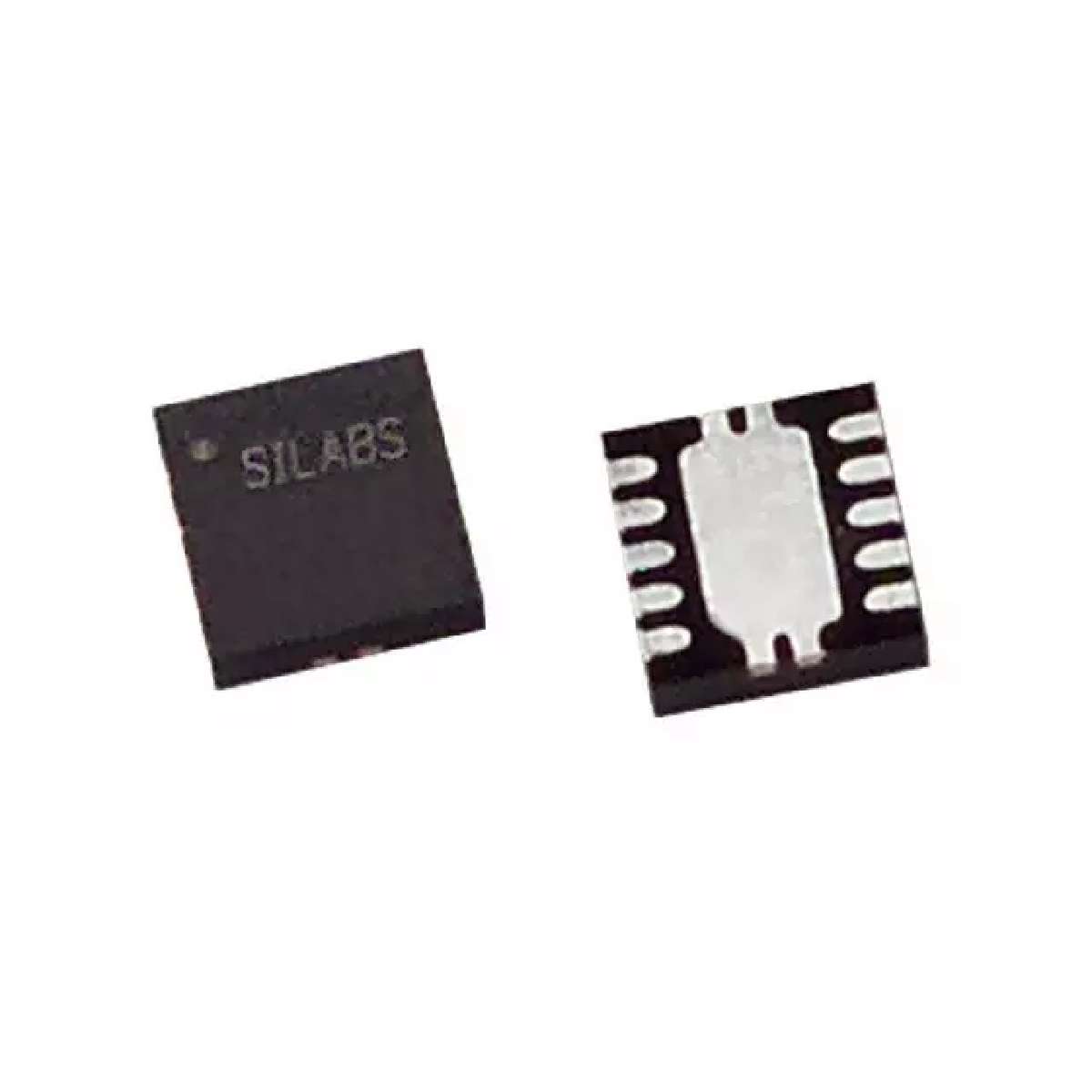

SILICON LABS芯科/C8051F300-GMR
A microcontroller is used in modern day control systems, this microcontroller from Silicon Laboratories is ideal for you. This microcontroller has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 25 MHz. This is a 8 bit processor. This device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V. Its ADC resolution is 8. This device is based on the 8051 core architecture. Its flash program memory is 8KB.
频率 25 MHz
电源电压DC 3.30 V, 3.60 V max
通道数 3
针脚数 11
时钟频率 25.0MHz max
RAM大小 256 x 8
FLASH内存容量 8000 B
I/O引脚数 8
存取时间 25.0 µs
内核架构 8051
模数转换数ADC 1
输入/输出数 8 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 11
封装 QFN-11
长度 3 mm
宽度 3 mm
高度 0.88 mm
封装 QFN-11
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C8051F300-GMR Silicon Labs 芯科 | 当前型号 | 当前型号 |
C8051F302-GM 芯科 | 完全替代 | C8051F300-GMR和C8051F302-GM的区别 |
C8051F302 芯科 | 完全替代 | C8051F300-GMR和C8051F302的区别 |
C8051F302-GMR 芯科 | 完全替代 | C8051F300-GMR和C8051F302-GMR的区别 |
