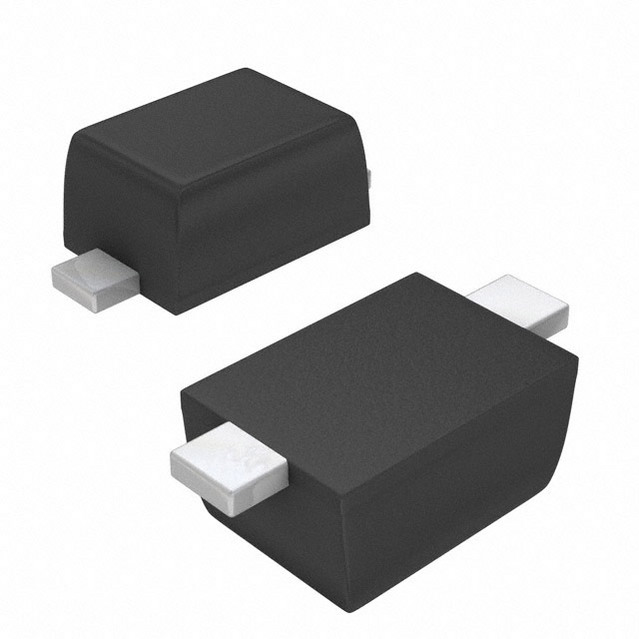

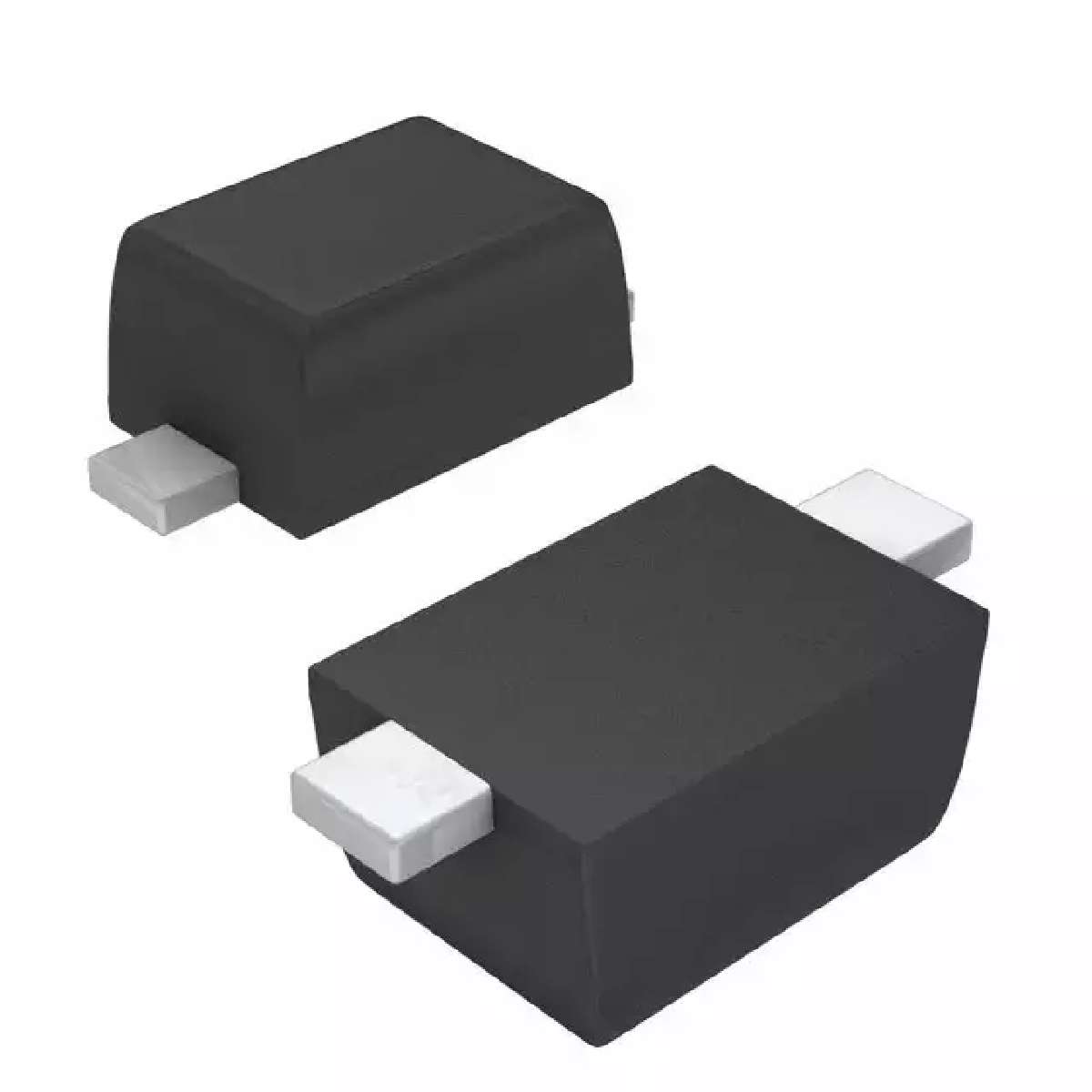

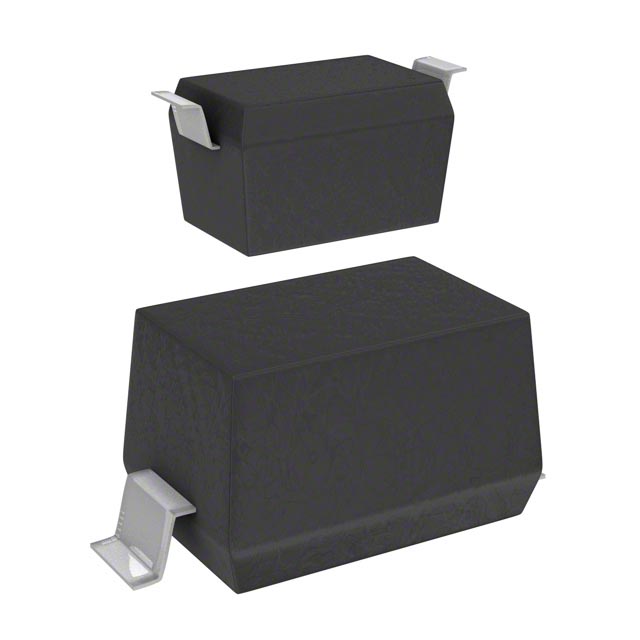

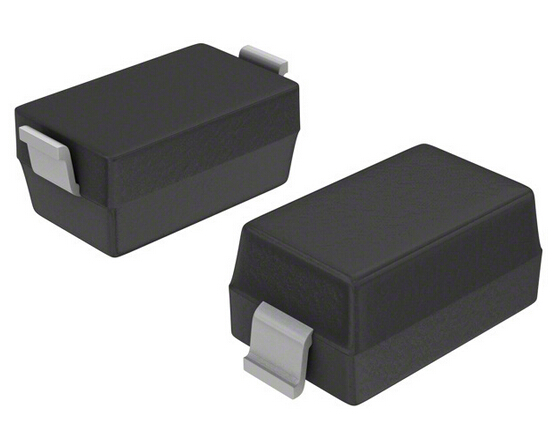

BZT52C11T 系列 300 mW 11 V 10 mA 表面贴装 齐纳二极管 - SOD-523
Zener Diode 11V 300mW ±5% Surface Mount SOD-523
立创商城:
11V 300mW
得捷:
DIODE ZENER 11V 300MW SOD523
艾睿:
This BZT52C11T-7 zener diode from Diodes Zetex is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its test current is 5 mA. Its maximum leakage current is 0.1 μA. Its maximum power dissipation is 300 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a single configuration. This zener device has a nominal voltage of 11 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C.
安富利:
Diode Zener Single 11V 5% 300mW 2-Pin SOD-523 T/R
Chip1Stop:
Diode Zener Single 11V 5% 300mW 2-Pin SOD-523 T/R
TME:
Diode: Zener; 300mW; 11V; SMD; reel, tape; SOD523
容差 ±5 %
额定功率 300 mW
正向电压 900mV @10mA
耗散功率 300 mW
测试电流 5 mA
稳压值 11 V
正向电压Max 0.9 V
额定功率Max 300 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 300 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-523-2
长度 1.3 mm
宽度 0.9 mm
高度 0.7 mm
封装 SOD-523-2
工作温度 -65℃ ~ 150℃
温度系数 7.2 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BZT52C11T-7 Diodes 美台 | 当前型号 | 当前型号 |
BZT52C10T-7 美台 | 类似代替 | BZT52C11T-7和BZT52C10T-7的区别 |
BZT52C5V6T-7 美台 | 功能相似 | BZT52C11T-7和BZT52C5V6T-7的区别 |
BZT52C15T-7 美台 | 功能相似 | BZT52C11T-7和BZT52C15T-7的区别 |
