CBR1M-M概述

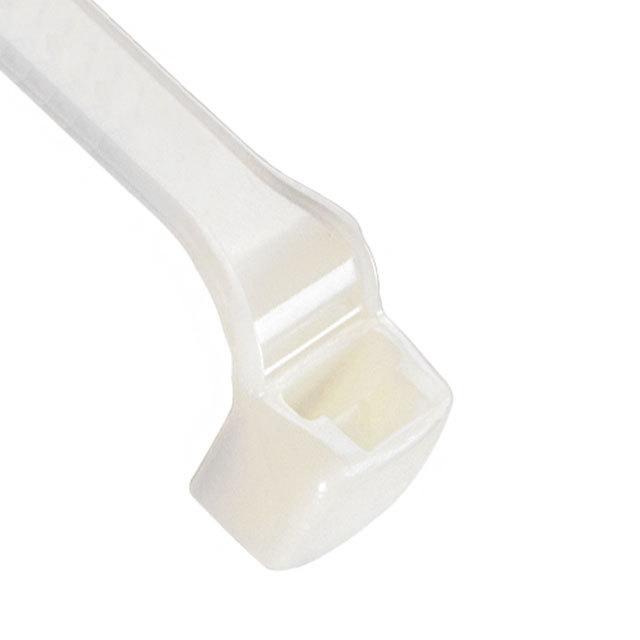

Panduit 尼龙 66 锁定电缆扎带 电缆扎带, 104mm x 2.5 mm

Contour-Ty® Cable Ties

has a huge selection of cable tie styles, sizes, materials, and colors to meet your needs. Panduit"s cable ties bundle, mount, and identify in countless indoor, oudoor and harsh environments.

Parallel-Entry Cable Ties are designed for use in the OEM and Transportation Markets. The parallel-entry design provides a low-profile head which avoids snags and reduces overall bundle size as well as providing no protusion of the tie cut-off which protects workers" arms and hands.

The CONTOUR-TY series have outside teeth and smooth, round edges to protect the cable jacket making it ideal for high vibration applications.

Miniature Cross Section

* Low profile head avoids snags and reduces overall bundle size

* Fully rounded edges on head and strap so no sharp edges come in contact with cable insulation jacket

* Parallel-entry design threads like a belt 180° entry

* Five cross sections available including our new Heavy-Standard size

* Choice of two materials: Natural Nylon 6.6 and Weather Resistant Nylon 6.6

* All cable tie cross sections have a curved tip that is easier to pick up from flat surfaces, allows faster initial threading and speeds installation

CBR1M-M中文资料参数规格
技术参数

工作温度Max 85 ℃

工作温度Min -40 ℃

外形尺寸

长度 104 mm

宽度 2.5 mm

高度 0.208 in

厚度 965 µm

物理参数

颜色 Natural

材质 Nylon

工作温度 85 ℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

在线购买CBR1M-M
型号: CBR1M-M
制造商: Panduit 泛达
描述:Panduit 尼龙 66 锁定电缆扎带 电缆扎带, 104mm x 2.5 mm
