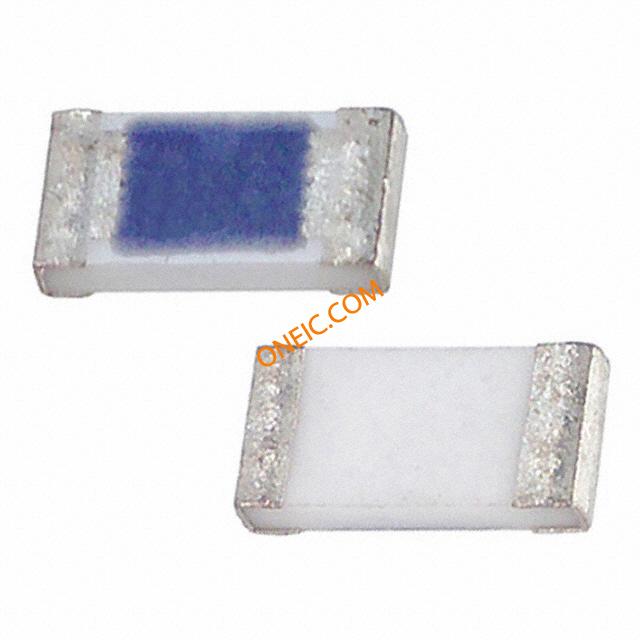

Fuse Chip Very Fast Acting 0.5A 125V SMD Solder Pad 1206 Ceramic T/R

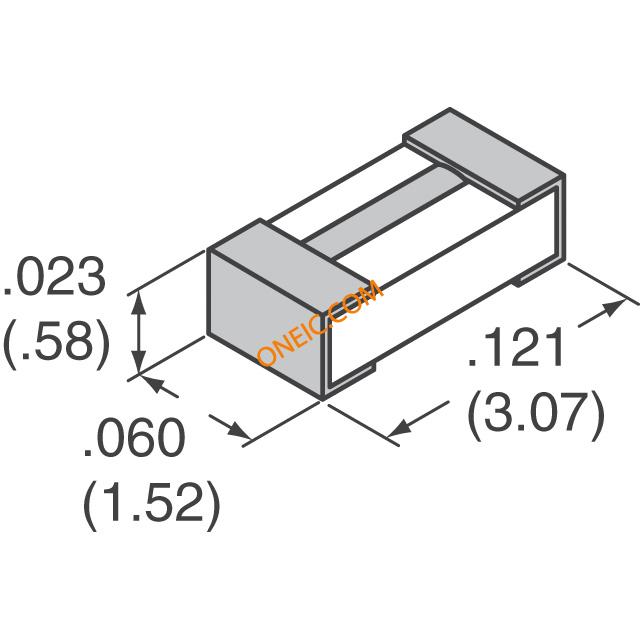

Be protected by adding a chip fuse developed by Bel Fuse. This device has a maximum power dissipation of 0.14 W. This device has a current rating of 0.5. Its maximum power dissipation is 0.14 W. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The C1Q 500 fuse has a solder pad termination style. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.07 mm long, 0.58 mm tall and 1.52 mm deep. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 63 VDC. Its fuse is made from ceramic.
额定电压DC 63 V
额定电压AC 125 V
额定电流 0.5 A
耗散功率 0.14 W
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 0.14 W
额定电压 125 V
额定电压DC Max 63 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.07 mm
宽度 1.52 mm
高度 0.58 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 125℃
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
