CD74HC390E

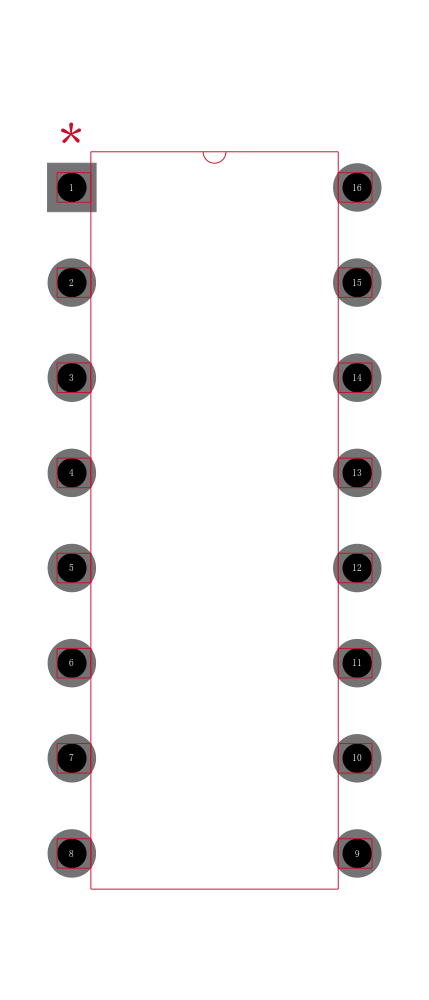

TEXAS INSTRUMENTS  CD74HC390E  逻辑芯片, 双十进制纹波计数器, 16DIP

The is a high speed CMOS dual decade Ripple Counter pin compatible with low-power Schottky TTL LSTTL. It is divided into four separately clocked sections. The counter has two divide-by-2 sections and two divide-by-5 sections. These sections are normally used in a BCD decade or bi quinary configuration, since they share a common master reset nMR. If the two master reset inputs 1MR and 2MR are used to simultaneously clear all 8 bits of the counter, a number of counting configurations are possible within one package. The separate clock inputs nCP0\ and nCP1\\ of each section allow ripple counter or frequency division applications of divide-by-2, 4. 5, 10, 20, 25, 50 or 100. Each section is triggered by the high-to-low transition of the input pulses nCP0\ and nCP1\\. For BCD decade operation, the nQ0 output is connected to the nCP1\ input of the divide-by-5 section.

.

Two master reset inputs to clear each decade counter individually

.

Balanced propagation delay and transition times

.

Significant power reduction compared to LSTTL logic ICs

.

High noise immunity

.

Direct LSTTL input logic compatibility

.

CMOS Input compatibility
