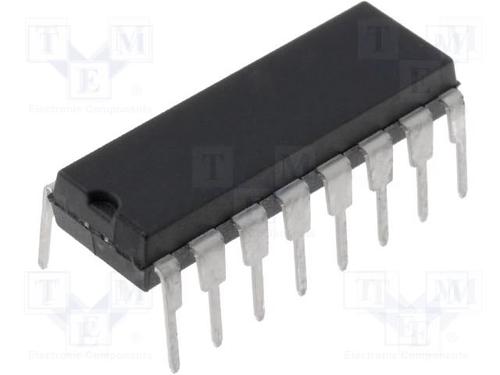

TEXAS INSTRUMENTS CD4516BE 芯片, 逻辑芯片 - 4000系列, 计数器
The is a CMOS presettable binary Up/Down Counter consists of four synchronously clocked D-type flip-flops connected as counters. This counter can be cleared by a high level on the RESET line and can be pre-set to any binary number present on the jam inputs by a high level on the PRESET ENABLE line. If the CARRY-IN input is held low, the counter advances up or down on each positive-going clock transition. Synchronous cascading is accomplished by connecting all clock inputs in parallel and connecting the CARRY-OUT of a less significant stage to the CARRY-IN of a more significant stage. The CD4516B can be cascaded in the ripple mode by connecting the CARRY-OUT to the clock of the next stage. If the UP/DOWN input changes during a terminal count, the CARRY-OUT must be gated with the clock and the UP/DOWN input must change while the clock is high. This method provides a clean clock signal to the subsequent counting stage.
电源电压DC 3.00V ~ 18.0V
输出接口数 4
针脚数 16
时钟频率 11 MHz
位数 4
电压波节 5.00 V, 10.0 V, 15.0 V
耗散功率 500 mW
输入电容 5.00 pF
输入数 4
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 16
封装 DIP-16
封装 DIP-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
