10号线到4线BCD优先编码器 10-LINE TO 4-LINE BCD PRIORITY ENCODER
Make the overall size of a system smaller by implementing a priority encoder from Texas Instruments. This encoder has an operating temperature range of -55 °C to 125 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
得捷:
IC PRIORITY ENCOD 1X10:4 16SOIC
立创商城:
优先顺序编码器 单电源 3V~18V
德州仪器TI:
10-Line to 4-Line BCD Priority Encoder
艾睿:
Make the overall size of a system smaller by implementing a CD40147BM priority encoder from Texas Instruments. This encoder has an operating temperature range of -55 °C to 125 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
安富利:
Encoder 10-to-4 Priority CMOS 16-Pin SOIC Tube
Chip1Stop:
Encoder 10-to-4 Priority CMOS 16-Pin SOIC Tube
Verical:
Encoder 10 to 4 Priority CMOS 16-Pin SOIC Tube
Newark:
# TEXAS INSTRUMENTS CD40147BM Priority Encoder, 4 Output, 3 V to 18 V, SOIC-16
DeviceMart:
IC BCD PRIORITY ENCODER 16SOIC
电源电压DC 3.00V min
输出接口数 4
位数 10
电压波节 5.00 V, 10.0 V, 15.0 V
耗散功率 500 mW
带宽 8.00 MHz
输入数 10
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16

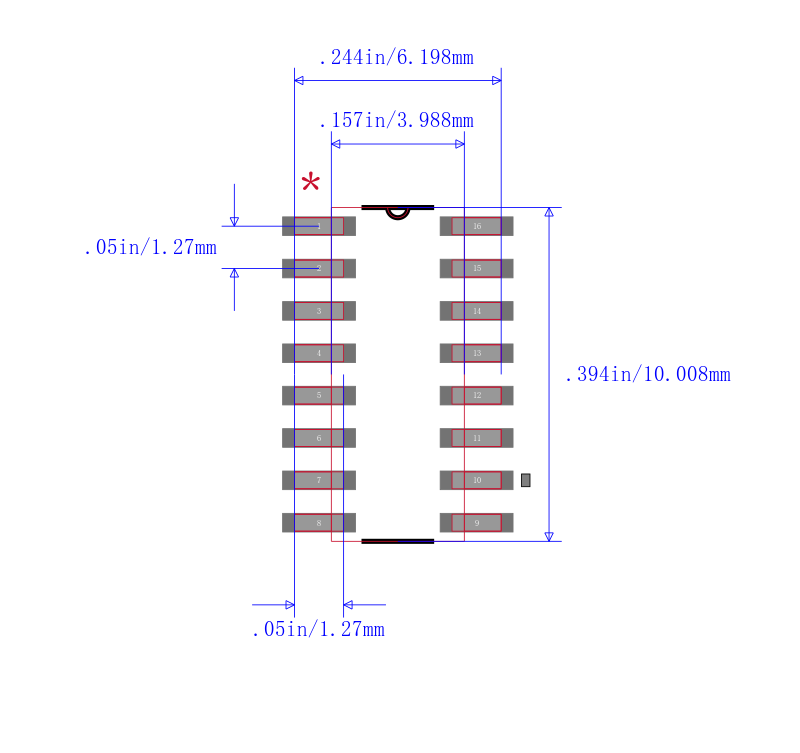

封装 SOIC-16
封装 SOIC-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD40147BM TI 德州仪器 | 当前型号 | 当前型号 |
CD40147BMT 德州仪器 | 完全替代 | CD40147BM和CD40147BMT的区别 |
CD40147BM96 德州仪器 | 完全替代 | CD40147BM和CD40147BM96的区别 |
CD40147BM96G4 德州仪器 | 完全替代 | CD40147BM和CD40147BM96G4的区别 |
