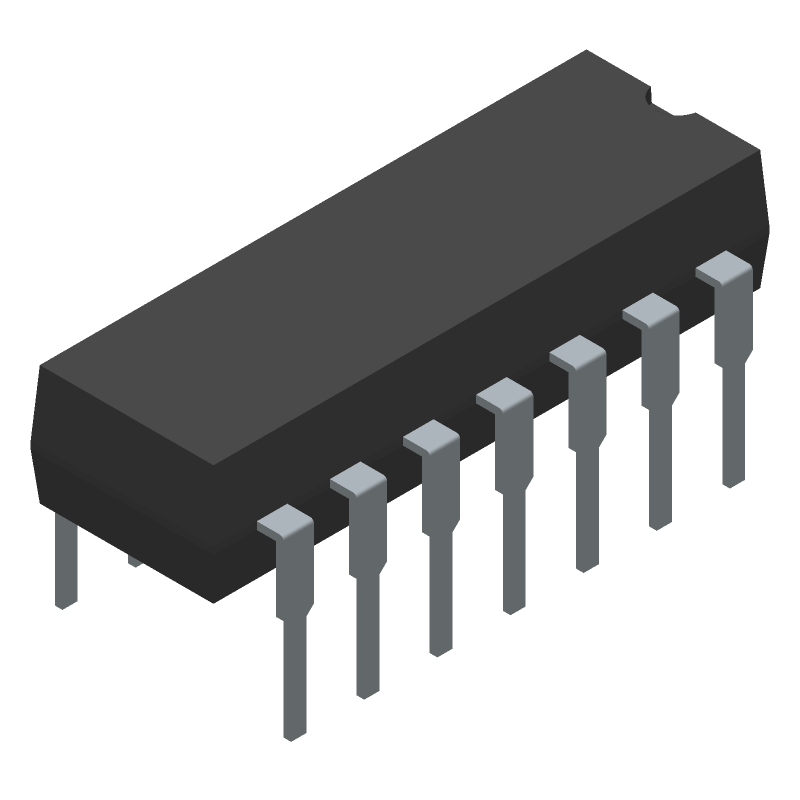

TEXAS INSTRUMENTS CD74ACT74E 触发器, 设置和复位, 互补输出, 正沿, D, 9.5 ns, 85 MHz, 24 mA, DIP, 14 引脚
description/ordering information
The ’ACT74 dual positive-edge-triggered devices are D-type flip-flops.
A low level at the preset PRE or clear CLR inputs sets or resets the outputs, regardless of the levels of the other inputs. When PRE and CLR are inactive high, data at the data D input meeting the setup time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not related directly to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs.
• Inputs Are TTL-Voltage Compatible
• Speed of Bipolar F, AS, and S, With
Significantly Reduced Power Consumption
• Balanced Propagation Delays
• ±24-mA Output Drive Current
– Fanout to 15 F Devices
• SCR-Latchup-Resistant CMOS Process and Circuit Design
• Exceeds 2-kV ESD Protection Per MIL-STD-883, Method 3015
频率 85 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 1
输出电流 24 mA
电路数 2
针脚数 14
时钟频率 85 MHz
位数 2
电压波节 5.00 V
逻辑门个数 2
输入电容 10 pF
输入数 1
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 14
封装 DIP-14
长度 19.3 mm
宽度 6.35 mm
高度 4.57 mm
封装 DIP-14
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD74ACT74E TI 德州仪器 | 当前型号 | 当前型号 |
SN74ACT74N 德州仪器 | 类似代替 | CD74ACT74E和SN74ACT74N的区别 |
74ACT74B 意法半导体 | 类似代替 | CD74ACT74E和74ACT74B的区别 |
CD74ACT74EE4 德州仪器 | 类似代替 | CD74ACT74E和CD74ACT74EE4的区别 |
