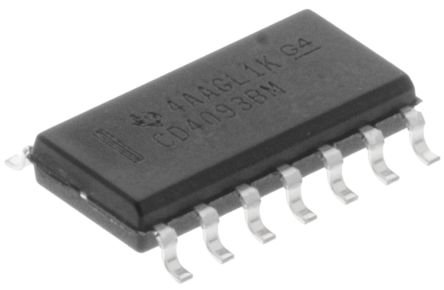

CD4093BM96

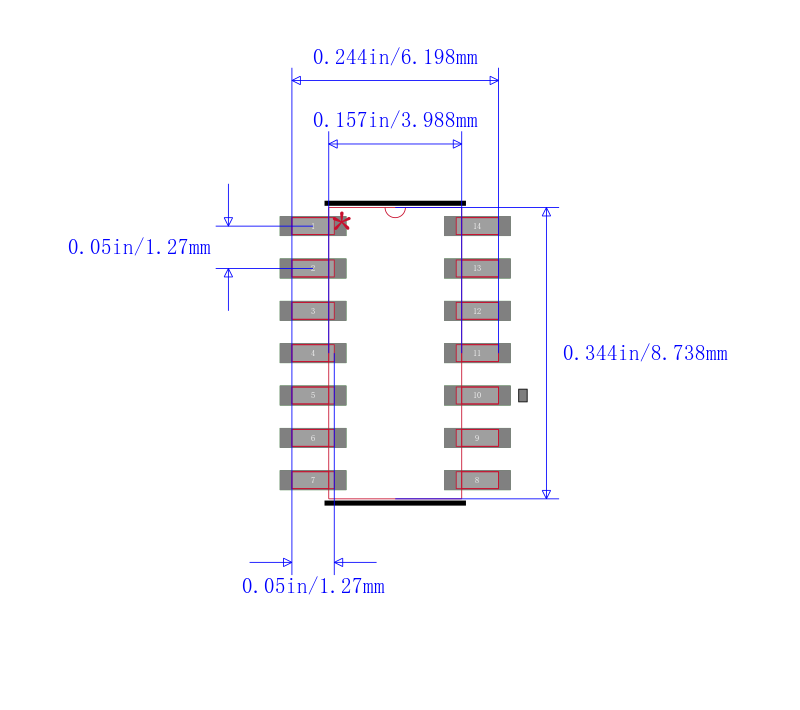

TEXAS INSTRUMENTS  CD4093BM96  与非施密特触发, 8输入, 4门, 6.8 mA, 3V至18V, SOIC-14

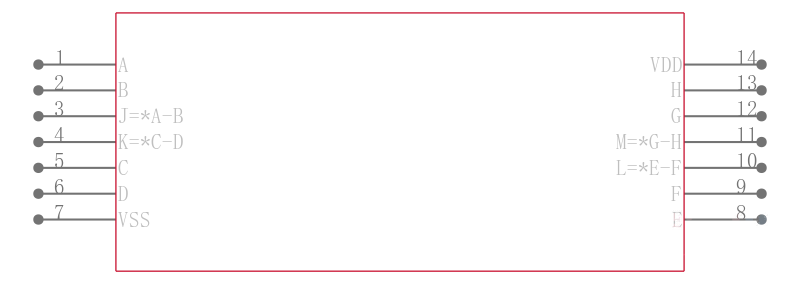

The is a CMOS quad 2-input NAND Schmitt-trigger consists of four circuits. Each circuit functions as a two-input NAND gate with Schmitt-trigger action on both inputs. The gate switches at different points for positive- and negative-going signals. The difference between the positive voltage VP and the negative voltage VN is defined as hysteresis voltage VH.

.

Schmitt-trigger action on each input with no external components

.

Hysteresis voltage typically 0.9V at VDD = 5V and 2.3V at VDD = 10V

.

Noise immunity greater than 50%

.

No limit on input rise and fall times

.

Standardized, symmetrical output characteristics

.

100% Tested for quiescent current at 20V

.

Maximum input current of 1µA at 18V

.

5V, 10V and 15V Parametric ratings

.

Meets all requirements of JEDEC tentative standard No. 13B

.

Green product and no Sb/Br
