CRCW0402100KFKEDHP

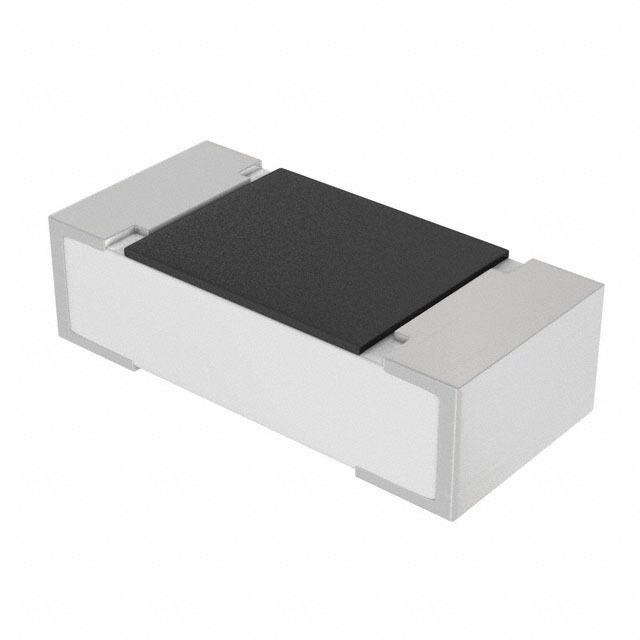

VISHAY  CRCW0402100KFKEDHP  片式电阻器, 表面贴装, 厚膜, AEC-Q200 CRCW系列, 100 kohm, 50 V, 0402 [1005公制], 125 mW, ± 1%

The Vishay CRCW-HP e3 series are pulse proof, high power thick film chip resistors. The CRCW-HP e3 series resistors have pure tin solder contacts on the Ni barrier layer that provides compatibility with the reflow soldering process

.

Excellent pulse load capability

.

Enhanced power rating

.

Double side printed resistor element

.

Protective overglaze

.

AEC-Q200 qualified, rev. C compliant

.

Available in ±0.5%, ±1% and ± 5% tolerance

.

Zero ohm jumper are available for all sizes with very high current

.

Power rating is double than the D/CRCW e3 series

.

Superior antisurge and pulse characteristics compared to D/CRCW e3 series
