CP2104-F03-GM

Silicon Laboratories### 串行输入/输出外设

串行输入/输出外围设备，Silicon Laboratories

欧时:

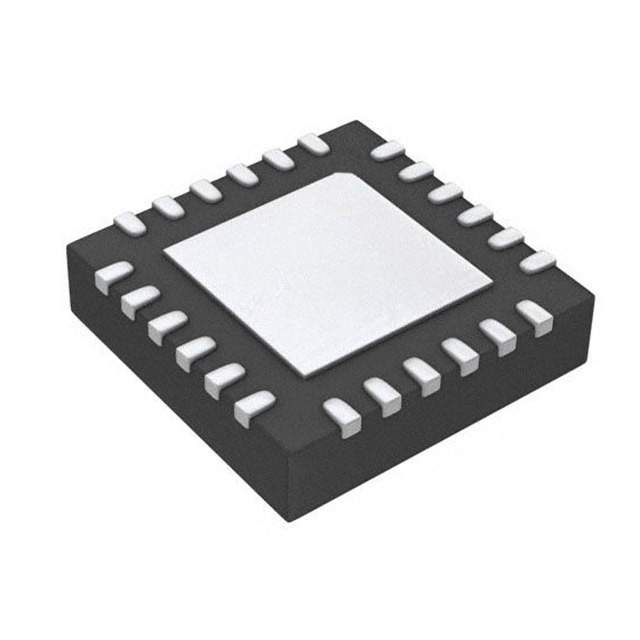

Silicon Labs CP2104-F03-GM 1 12MBps USB 控制器, 支持USB 至 UART, 3 → 3.6 V, 24针 QFN封装

得捷:
IC SGL USB-TO-UART BRIDGE 24QFN

立创商城:
Silicon Labs-MCU

贸泽:
输入/输出控制器接口集成电路 USB to UART Bridge QFN24

艾睿:
USB-to-UART 1-CH 576byte FIFO 3.3V Automotive 24-Pin QFN EP Tube

安富利:
The CP2104 is a highly-integrated USB-to-UART Bridge Controller providing a simple solution for updating RS-232/RS-485 designs to USB using a minimum of components and PCB space. The CP2104 includes a USB 2.0 full-speed function controller, USB transceiver, oscillator, one-time programmable ROM, and asynchronous serial data bus UART with full modem control signals in a compact 4 x 4 mm QFN-24 package sometimes called "MLF" or "MLP". No other external USB components are requiredThe on-chip one-time programmable ROM may be used to customize the USB Vendor ID, Product ID, Product Description String, Power Descriptor, Device Release Number, Device Serial Number, and GPIO configuration as desired for OEM applicationsRoyalty-free Virtual COM Port VCP device drivers provided by Silicon Labs allow a CP2 104-based product to appear as a COM port to PC applications. The CP2104 UART interface implements all RS-232/RS-485 signals, including control and handshaking signals, so existing system firmware does not need to be modified. The device also features up to four GPIO signal s that can be user-defined for status and control information. Support for I/O interface voltages down to 1.8 V is provided via a VIO pin. In many existing RS-232 designs, all that is required to update the design from RS-232 to USB is to replace the e RS-232 level-translator with the CP2104. Direct access driver support is available through the Silicon Labs USBXpress driver set

Verical:
Full Speed Basic USB Type-C Controller USB 2.0 3.3V Tube Automotive 24-Pin QFN EP
