高速CMOS逻辑四路2输入多路复用器 High-Speed CMOS Logic Quad 2-Input Multiplexers
Is your microprocessor running out of IO ports? Reduce the number of electrical lines with Texas Instruments" multiplexer, a tool that can easily forward one of many selected lines into a single port! This multiplexer has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device comes in tube packaging. It is made in a 4 x 2:1 configuration. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
电源电压DC 4.50V min
输出接口数 4
触点类型 DPST
电路数 4
通道数 4
位数 4
极性 Non-Inverting
耗散功率 600 mW
带宽 28.0 MHz
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 16

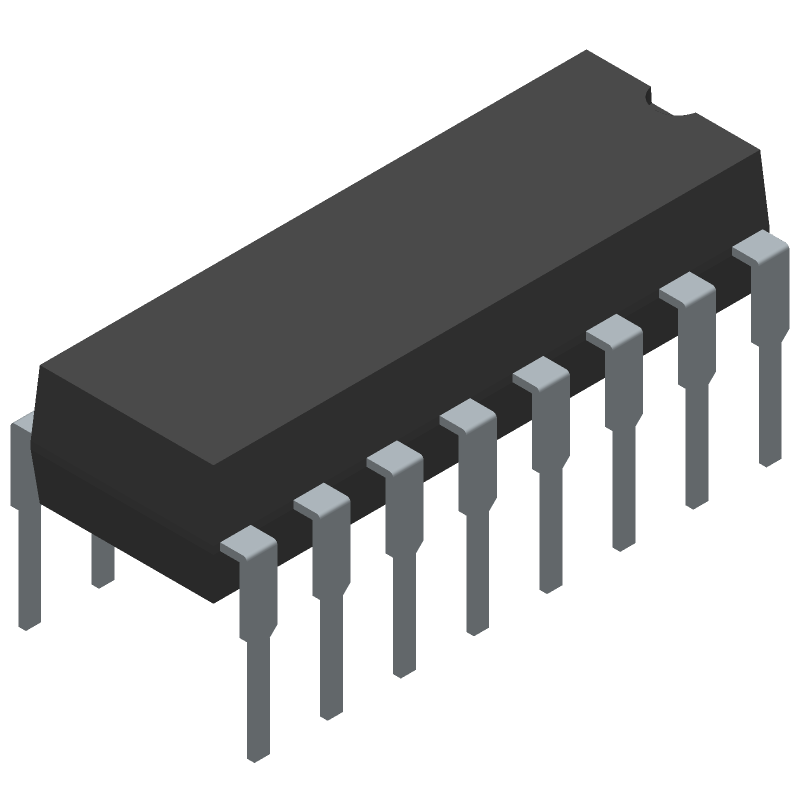

封装 PDIP-16
长度 19.3 mm
宽度 6.35 mm
高度 4.57 mm
封装 PDIP-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD74HCT157E TI 德州仪器 | 当前型号 | 当前型号 |
CD74HCT157EE4 德州仪器 | 类似代替 | CD74HCT157E和CD74HCT157EE4的区别 |
SN74HCT157N 德州仪器 | 功能相似 | CD74HCT157E和SN74HCT157N的区别 |
SN74HCT157NE4 德州仪器 | 功能相似 | CD74HCT157E和SN74HCT157NE4的区别 |
