64 kb的SPI串行EEPROM CMOS 64-Kb SPI Serial CMOS EEPROM
The CAT25640 is a 64-kb Serial CMOS EEPROM device internally organized as 8kx8 bits. This features a 64-byte page write buffer and supports the Serial Peripheral Interface SPI protocol. The device is enabled through a Chip Select input. In addition, the required bus signals are clock input SCK, data input SI and data output SO lines. The input may be used to pause any serial communication with the CAT25640 device. The device features software and hardware write protection, including partial as well as full array protection.
Features
---
|
\- Protect 1/4, 1/2 or Entire EEPROM Array
频率 10 MHz
电源电压DC 1.80V min
供电电流 3 mA
时钟频率 10 MHz
内存容量 8000 B
存取时间Max 40 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 8

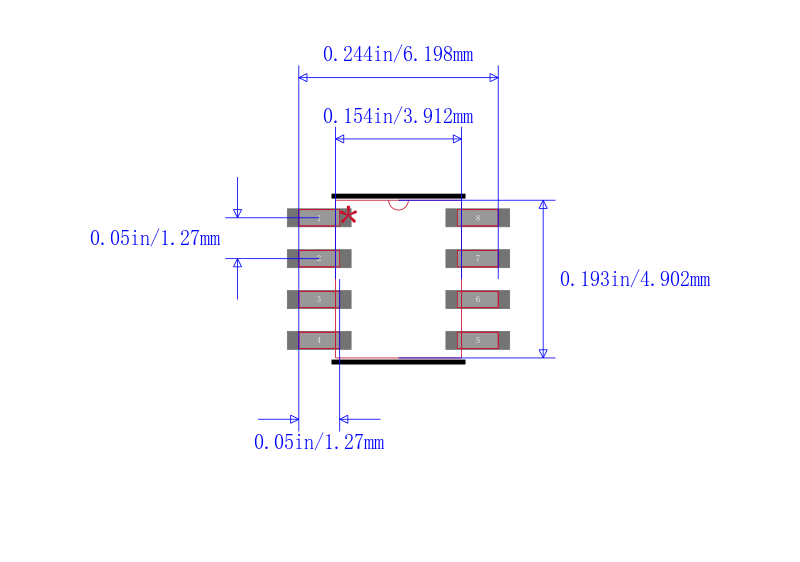

封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 Computer Systems, Communications Systems, Automotive Systems, Consumer Systems, Industrial Systems
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CAT25640VI-G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
CAT25640VI-GT3 安森美 | 类似代替 | CAT25640VI-G和CAT25640VI-GT3的区别 |
