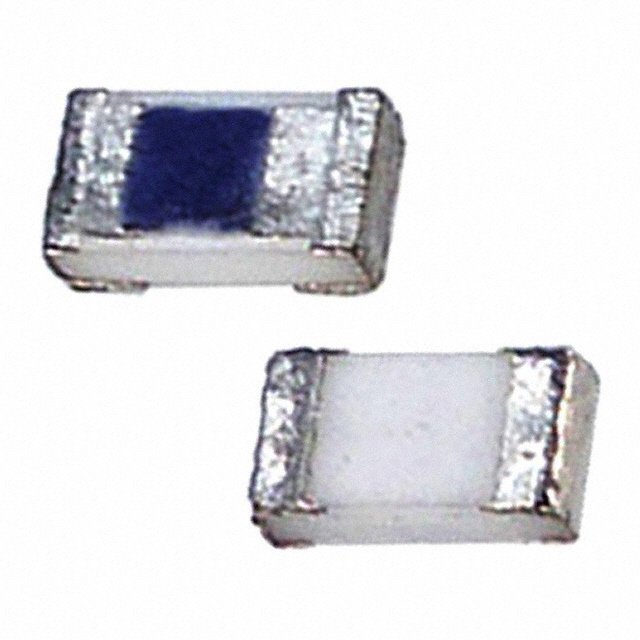

Fuse Chip Very Fast Acting 0.25A 32V SMD Solder Pad 0603 Ceramic
A great alternative to a circuit breaker, this a chip fuse from Bel Fuse will protect your electronics. This device has a maximum power dissipation of 0.08 W. Its maximum power dissipation is 0.08 W. This device has a current rating of 0.25. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The C2Q 250 fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 1.6 mm long, 0.48 mm tall and 0.82 mm deep. The maximum AC voltage rating is 32 VAC and the maximum DC voltage rating is 63 VDC. Its fuse is made from ceramic.
额定电压DC 63 V
额定电压AC 32 V
额定电流 250 mA
耗散功率 0.08 W
电阻 0.77 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 0.08 W
额定电压 32 V
额定电压DC Max 63 V
额定电压AC Max 32 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.82 mm
高度 0.48 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 125℃
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
